EASTEY EB25A Automatic Shrink Bundler
EASTEY EB25A Automatic Shrink Bundler
SKU:PAC-64650b
Reliable EASTEY EB25A Automatic Bundler for precise sealing of various films, featuring a hot knife seal bar and Siemens PLC touchscreen.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
EASTEY EB25A Automatic Shrink Bundler
$12,499.99
Quantity: 1
Claim Your Seller Account
EASTEY EB25A Automatic Shrink Bundler
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

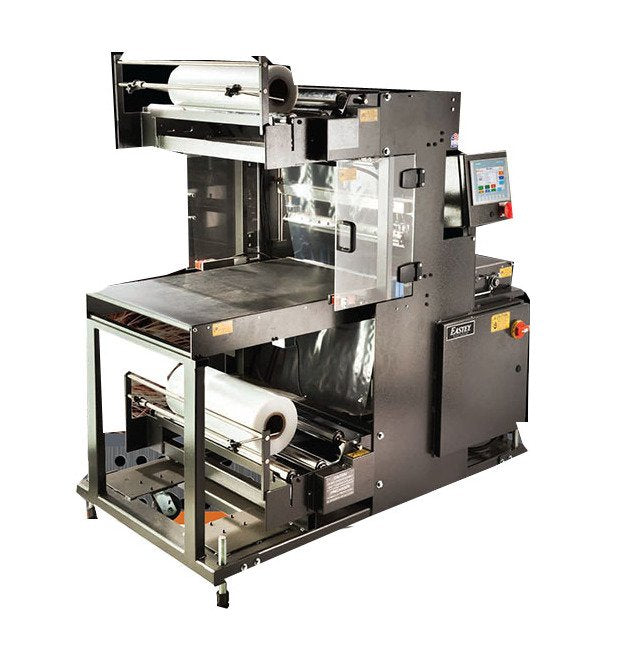

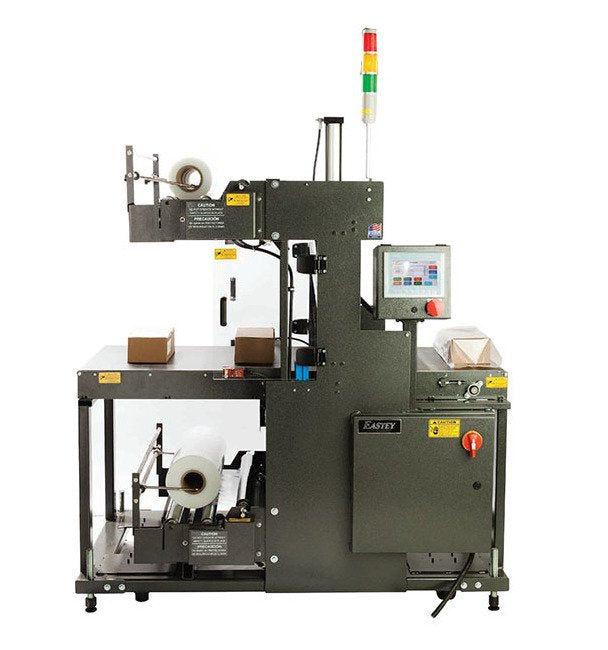

The EASTEY EB25A Professional Series Automatic Bundler is a reliable and cost-effective solution for achieving precise tray, individual, or multi-product bundling with a 'bull's-eye closure'. Built on a sturdy 1/4" cold rolled steel frame, this bundler can efficiently seal various films like polyolefin, polyethylene, and PVC with its 25" hot knife seal bar. It features upper and lower powered film unwinds, a Siemens PLC touchscreen for easy operation, and a compact design for space efficiency. With soft start conveyors and automatic seal systems, it ensures consistent and secure bundling for a range of applications.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY'S automatic bundlers are expertly welded on 1/4" cold rolled steel frames and designed to handle the day to day abuse of most bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and upper and lower power film unwind for ease of use. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Conveyor Height Maximum Conveyor Height
38 in | 97 cm
Conveyor Height Minimum Conveyor Height
34.75 in | 88 cm
Key Features Key Features

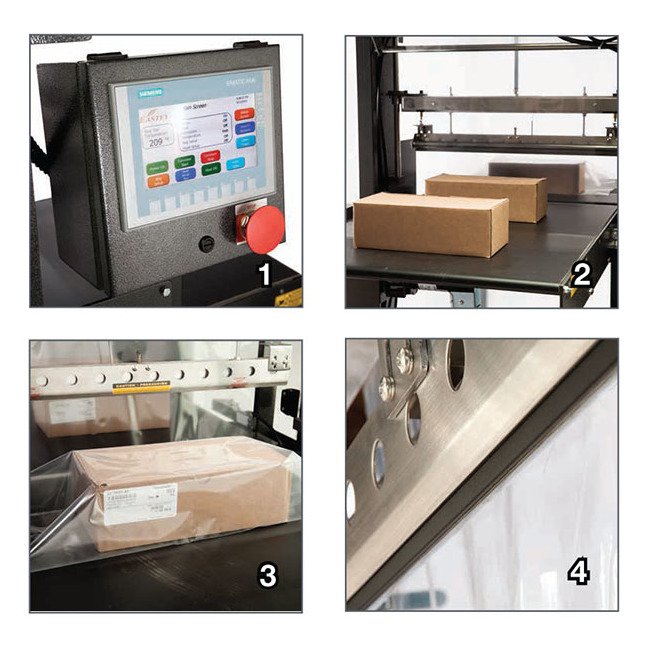

Color Touchscreen PanelColor PLC touchscreen features simple menus for easy operation, and can be password protected if neededConveyor Infeed and OutfeedSoft start infeed and outfeed conveyors reduce product shifting25" Wide Seal BarFixed lower seal bar provides a clean consistent seal and accommodates random height productsHot Knife Seal SystemHot knife seal bar provides positive sealing on a wide variety of film

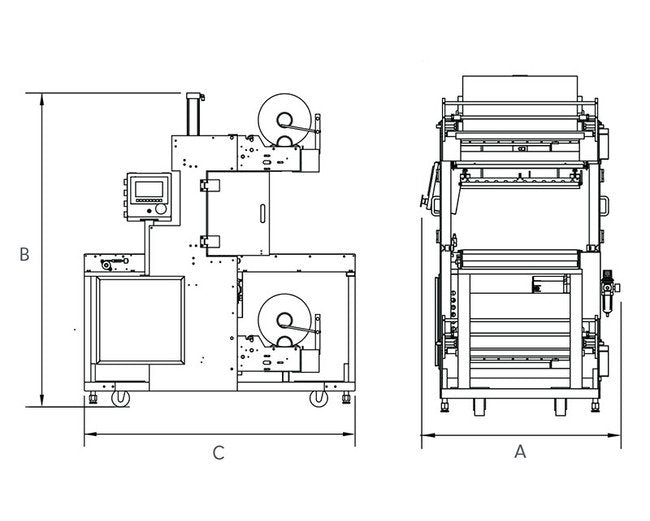

Machine Dimensions Machine Height B
71.3 in | 181 cm
Machine Dimensions Machine Length C
61.5 in | 156 cm
Machine Dimensions Machine Width A
41.8 in | 106 cm
Note Note
Made in the USA
Seal Dimensions Seal Height
12 in | 30 cm
Seal Dimensions Seal Width
25 in | 64 cm
Specifications Maximum Film Outside Diameter
14 in
Specifications Maximum Film Width
25 in
Specifications Shipping Weight
1600 lb
Specifications Weight
1400 lb
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink film25" wide hot knife seal provides a consistent "bulls-eye" closureUpper and lower powered film unwind for smooth feed of filmAll-welded main frame from 1/4" cold rolled steel for durability12" product pass through height accommodates 11" tall productBases supplied with casters for easy transportReliable product transfer between infeed and exit conveyorSoft start infeed and outfeed conveyors to reduce product shiftingFixed lower seal bar provides a clean consistent seal and accommodates random height productsAutomatic seal system with pneumatic hold for consistent pressureSelf tracking conveyor belt and product indexing34.75" conveyor heightSiemens PLC touchscreen with full color HMIFlexibility for fully automatic or single product operationSmall footprint - 61.5" L x 41.8" W x 71.3" HDurable custom two-part epoxy finish resists scratching220V standard; optional 480VRequires 60 psi; 3.5 cfmEasy to use design requires minimal training and maintenance
Standard Power Current
10 A
Standard Power Phase
1
Standard Power Voltage
220 V
