Eastey EB35A-50-70 Automatic Bundler
Eastey EB35A-50-70 Automatic Bundler
SKU:PAC-ef2f69
Efficiently seal and bundle products with Eastey's automatic bundler, featuring a 76-inch width, 50" hot knife seal system, and user-friendly touchscreen operation.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Eastey EB35A-50-70 Automatic Bundler
$24,999.00
Quantity: 1
Claim Your Seller Account
Eastey EB35A-50-70 Automatic Bundler
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

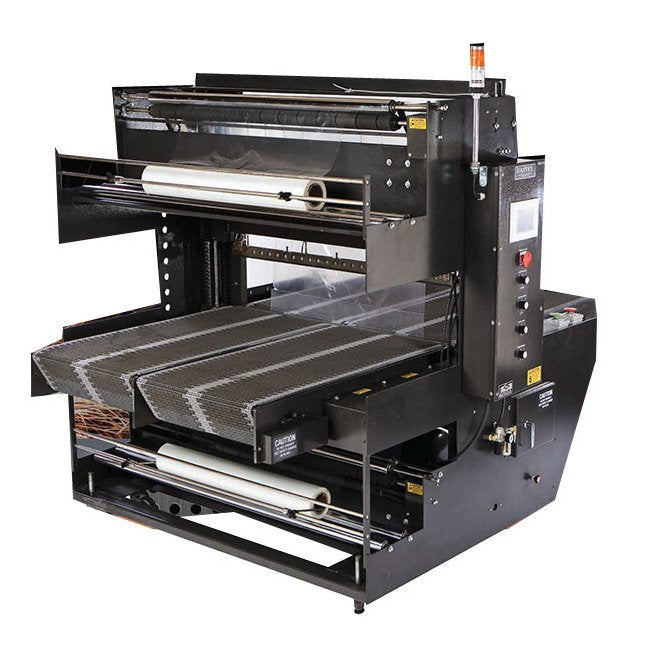

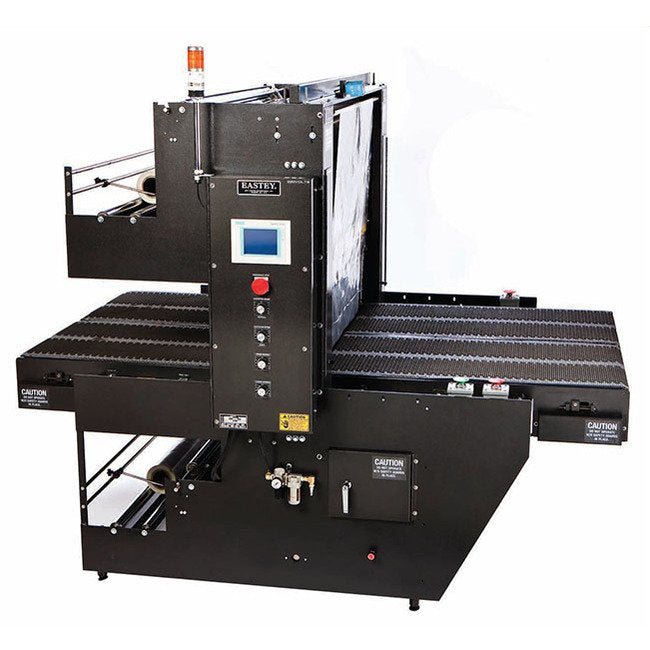

The Eastey EB35A-50-70 Automatic Bundler from the Professional Series is a robust solution offering precise 'bull's-eye closure' for trays and various packaged products. With a 76-inch machine width and expertly welded on a 1/4" cold rolled steel frame, this bundler ensures durability and reliability. Key features include a 50" hot knife seal system, adjustable product pass through height up to 22", and color PLC touchscreen operation for easy adjustments. Designed to meet the demands of shrink packaging applications, Eastey's bundler is a cost-effective choice built to high-quality standards.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY'S automatic bundler's are expertly welded on 1/4" cold rolled steel frames and designed to handle the day to day abuse of even the most demanding bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and an upper and lower power film u wind for ease of use. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Conveyor Dimensions Conveyor Length
98 in | 248 cm
Conveyor Dimensions Conveyor Width
52 in | 132 cm
Key Features Key Features

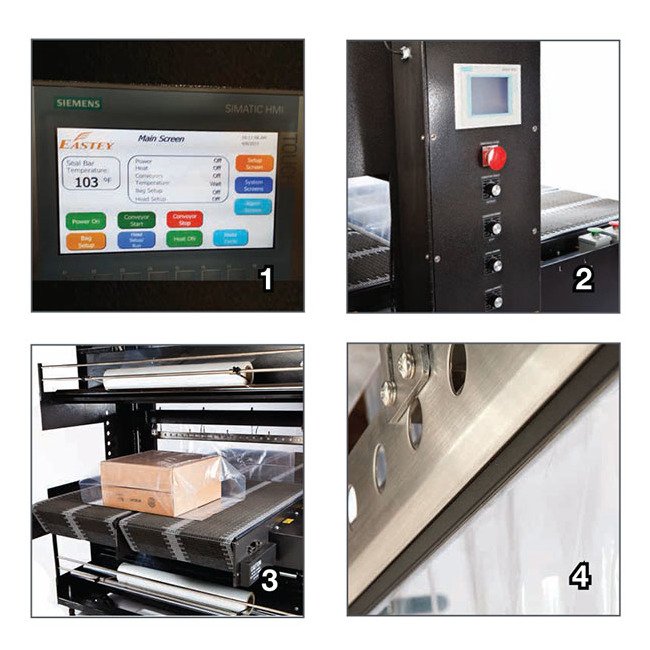

Color Touchscreen PanelColor PLC touchscreen can be password protected if neededControl PanelEasy to use control panel lets users adjust dwell time and temperature settings for their specific applicationRugged Exit ConveyorExit conveyor transfers the package into a recommended Eastey shrink bundling tunnel to produce a very tight and secure packageHot Knife50" hot knife seal system ensures a clean, positive, and even seal every time

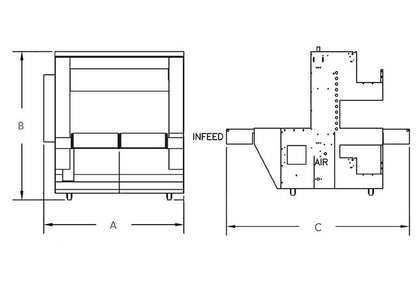

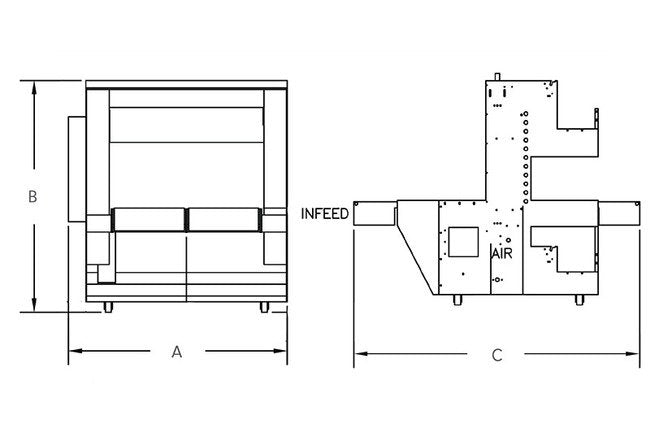

Machine Dimensions Machine Height B
79 in | 200 cm
Machine Dimensions Machine Length C
98 in | 248 cm
Machine Dimensions Machine Width A
76 in | 193 cm
Seal Dimensions Seal Height
22 in | 55 cm
Seal Dimensions Seal Width
50 in | 127 cm
Specifications Maximum Film Outside Diameter
12 in
Specifications Maximum Film Width
68 in
Specifications Shipping Weight
3000 lb | 1360 kg
Specifications Standard Conveyor Length
4 ft
Specifications Weight
2800 lb | 1270 kg
Standard Features Standard Features
Designed to seal polyethylene film50" wide hot knife seal systemUp to 22" adjustable product pass through heightInfeed product guides where necessaryUpper and lower powered film u wind for smooth feed of filmFilm loading from left or right sideColor PLC touchscreen operation for easy adjustmentsOptional password protectionSelf tracking conveyor belt and product indexingFlexibility for fully automatic or single product operationLeft or right angle infeed conveyors availableManual infeed availableAll-welded main frame from 1/4" cold rolled steelBases supplied with locking casters for easy transportLeveling legs to provide study baseDurable custom two-part epoxy finish resists scratching220v standard; Optional 480VMade in the USAEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
15 A
Standard Power Phase
1
Standard Power Voltage
220 V
