EASTEY EB35A-50-70 Professional Series Automatic Bundler
EASTEY EB35A-50-70 Professional Series Automatic Bundler
SKU:PAC-c9df43
Achieve reliable and precise bundling with the EASTEY EB35A-50-70 Automatic Bundler. Rugged design, hot knife seal system, and color touchscreen operation for ease.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
EASTEY EB35A-50-70 Professional Series Automatic Bundler
$12,999.99
Quantity: 1
Claim Your Seller Account
EASTEY EB35A-50-70 Professional Series Automatic Bundler
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

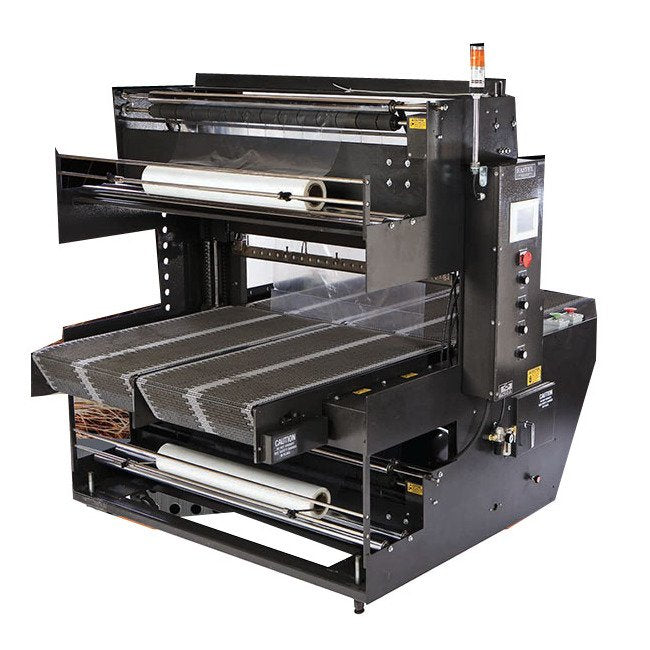

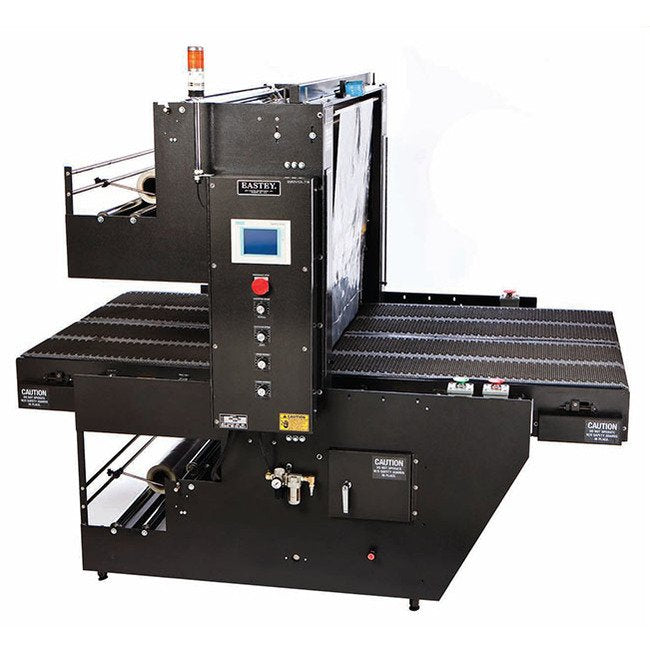

The EASTEY EB35A-50-70 Professional Series Automatic Bundler is a reliable solution for achieving precise 'bull's-eye closure' on trays, individual, or multi-packed products. Built with exceptional quality and affordability in mind, this bundler boasts a 61-inch (154 cm) width, 35-inch (88 cm) hot knife seal system, and a color PLC touchscreen for seamless operation. Expertly welded on 1/4" cold rolled steel frames, this rugged bundler is designed to handle even the most demanding applications, making it a leader in the shrink packaging industry for over 25 years.
Product Specifications
Additional Information Additional Information
RUGGED DESIGNEASTEY'S automatic bundler's are expertly welded on 1/4" cold rolled steel frames and designed to handle the day to day abuse of even the most demanding bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and an upper and lower power film u wind for ease of use. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Conveyor Dimensions Conveyor Length
98 in | 248 cm
Conveyor Dimensions Conveyor Width
37 in | 93 cm
Key Features Key Features

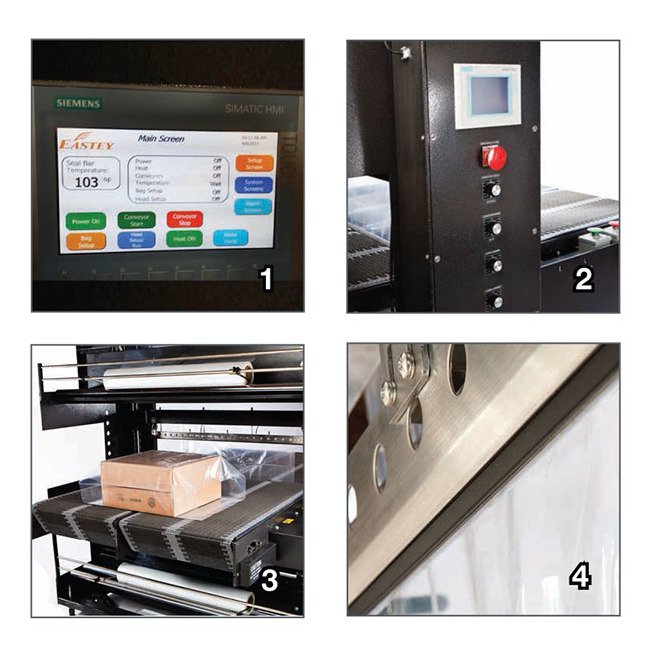

Color Touchscreen PanelColor PLC touchscreen can be password protected if neededControl PanelEasy to use control panel lets users adjust dwell time and temperature settings for their specific applicationRugged Exit ConveyorExit conveyor transfers the package into a recommended Eastey shrink bundling tunnel to produce a very tight and secure packageHot Knife35" hot knife seal system ensures a clean, positive, and even seal every time

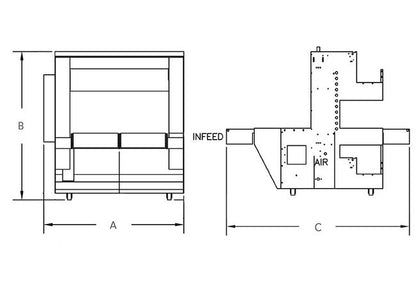

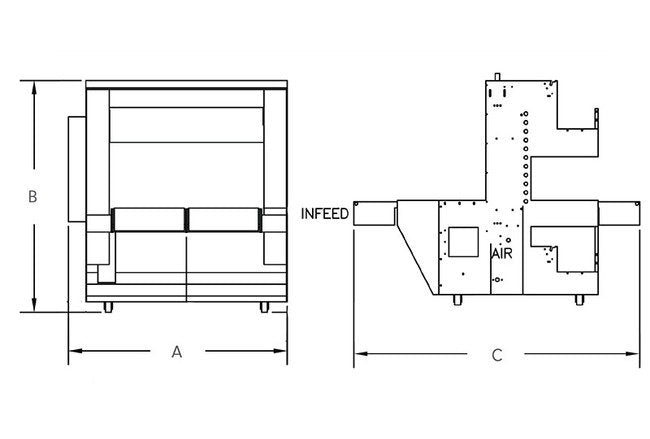

Machine Dimensions Machine Height B
79 in | 200 cm
Machine Dimensions Machine Length C
98 in | 248 cm
Machine Dimensions Machine Width A
61 in | 154 cm
Seal Dimensions Seal Height
22 in | 55 cm
Seal Dimensions Seal Width
35 in | 88 cm
Specifications Maximum Film Outside Diameter
12 in
Specifications Maximum Film Width
68 in
Specifications Shipping Weight
2500 lb | 1133 kg
Specifications Standard Conveyor Length
4 ft
Specifications Weight
2300 lb | 1043 kg
Standard Features Standard Features
Designed to seal polyethylene film35" wide hot knife seal systemUp to 22" adjustable product pass through heightInfeed product guides where necessaryUpper and lower powered film u wind for smooth feed of filmFilm loading from left or right sideColor PLC touchscreen operation for easy adjustmentsOptional password protectionSelf tracking conveyor belt and product indexingFlexibility for fully automatic or single product operationLeft or right angle infeed conveyors availableManual infeed availableAll-welded main frame from 1/4" cold rolled steelBases supplied with locking casters for easy transportLeveling legs to provide study baseDurable custom two-part epoxy finish resists scratching220v standard; Optional 480VMade in the USAEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
10 A
Standard Power Phase
1
Standard Power Voltage
220 V
