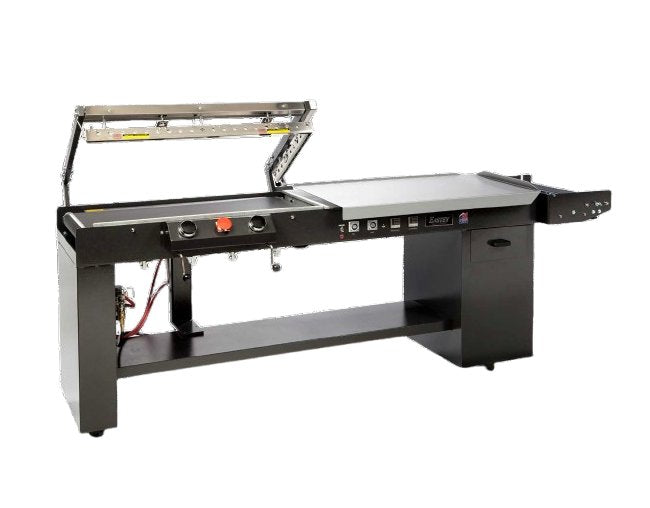

Eastey ESA 100" Pneumatic Semi-Automatic L-Sealer
Eastey ESA 100" Pneumatic Semi-Automatic L-Sealer
SKU:ESA-674068
Eastey ESA Professional Series 100" Pneumatic Semi-Automatic L-Sealer - The ultimate solution for durable and reliable sealing in high-demand applications.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
Eastey ESA 100" Pneumatic Semi-Automatic L-Sealer
$19,999.00
Quantity: 1
Claim Your Seller Account
Eastey ESA 100" Pneumatic Semi-Automatic L-Sealer
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eastey ESA Professional Series 100 Inch Pneumatic Semi-Automatic L-Sealer is a top-of-the-line solution designed for durability in high-demand sealing applications. Made from expertly welded 1/4" cold rolled steel, this L-Sealer is built to withstand the toughest challenges. With features like cast seal arms, stainless steel film clamps, and dual locking magnet clamps, it guarantees reliable sealing performance for various films. This Made in the USA product offers exceptional strength and precision, making it a leader in the industry for over 25 years.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
227 in | 577 cm
Machine Dimensions Machine Width
34 in | 86 cm
Proven Reliability For Your Needs Proven Reliability For Your Ne
Eastey® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, pneumatic operation, stainless steel film clamps, and heavy-duty magnet clamping are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Seal Dimensions Seal Front Size
100 in | 254 cm
Seal Dimensions Seal Side Size
20 in | 50 cm
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC (Powered film unwind included) shrink filmsAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingDual palm pneumatic seal head activationHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50" ; front seal size from 16" - 100"Maximum film width up to 44"Maximum film roll OD up to 12"; 10" with power unwindCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110V, 220V, or optional 480V60-80 psi air requirementEasy to use design requires minimal training and maintenanceMade in the USA
Standard Power Current
20 A
Standard Power Optional Voltage
480 V
Standard Power Phase
1
Standard Power Voltage
220 V
Technical Specs Air Pressure
60 to 80 psi
Technical Specs Brands
Eastey®
Technical Specs Shipping Weight
2000 lb | 907 kg
Technical Specs Weight
1900 lb | 861 kg
