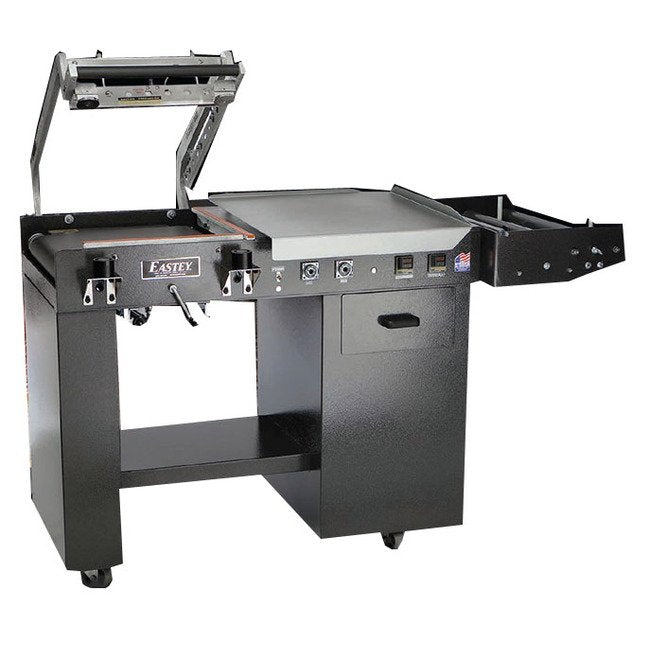

The EASTEY Performance Series 40 Inch Front Seal Dimension Semi-Automatic L-Sealer is a rugged and reliable workhorse designed for demanding sealing applications. Constructed from 1/4" cold rolled steel, this L-Sealer is built to withstand even the harshest conditions. With features like stainless steel film clamps, dual locking magnet clamps, and adjustable dwell time, it ensures precise and efficient sealing of a variety of films. EASTEY L-Sealers are known for their durability and performance, making them a trusted choice for shrink packaging needs.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEASTEY® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
106 in | 269 cm
Machine Dimensions Machine Width
34 in | 86.36 cm
Note Note
Made in the USA
Optional Accessories Optional Accessories

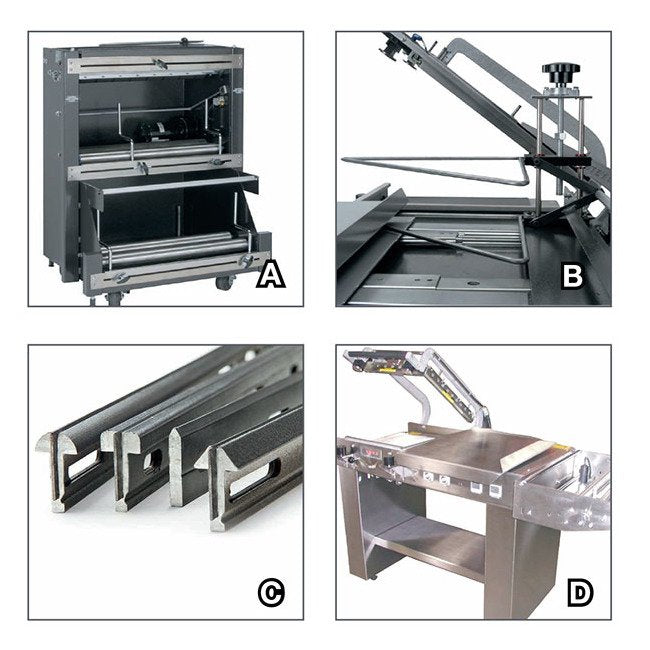

Power film unwindAllows free feeding of film increasing operator efficiency.Film InverterInverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife InsertsHot knife inserts available in Mushroom, Pancake, or Arrow styles.Stainless Steel and Left Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
40 in | 101.60 cm
Seal Dimensions Side Seal Dimension
20 in | 51 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
900 lb | 408 kg
Specifications Weight
800 lb | 362 kg
Standard Features Standard Features

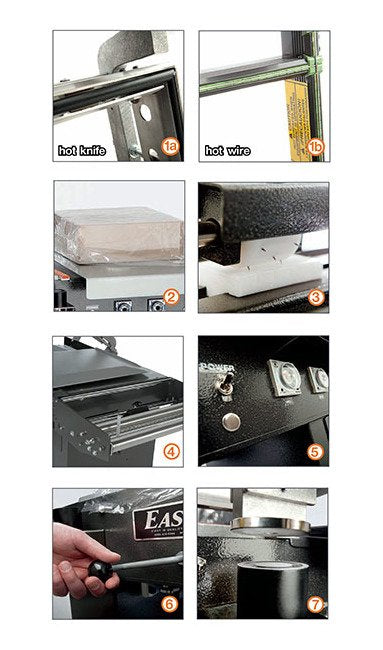

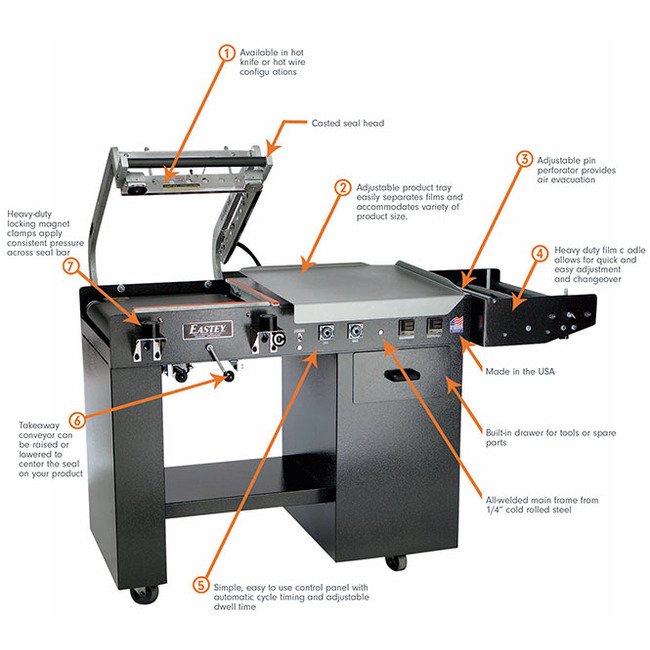

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingAvailable with hot wire or hot knife seal systemsHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480vEasy to use design requires minimal training and maintenance
Standard Power Current
15 A
Standard Power Phase
1
Standard Power Voltage
220 V
