EASTEY Performance 70 Inch Semi-Automatic L-Sealer
EASTEY Performance 70 Inch Semi-Automatic L-Sealer
SKU:PAC-30df2d
Powerful EASTEY Performance Series L-Sealer for durability & reliability in sealing poly films. Ideal for diverse product sizes.
Regular price
$11,800.00
Regular price
Sale price
$11,800.00
Unit price
per
Initiate Order
EASTEY Performance 70 Inch Semi-Automatic L-Sealer
$11,800.00
Quantity: 1
Claim Your Seller Account
EASTEY Performance 70 Inch Semi-Automatic L-Sealer
$11,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

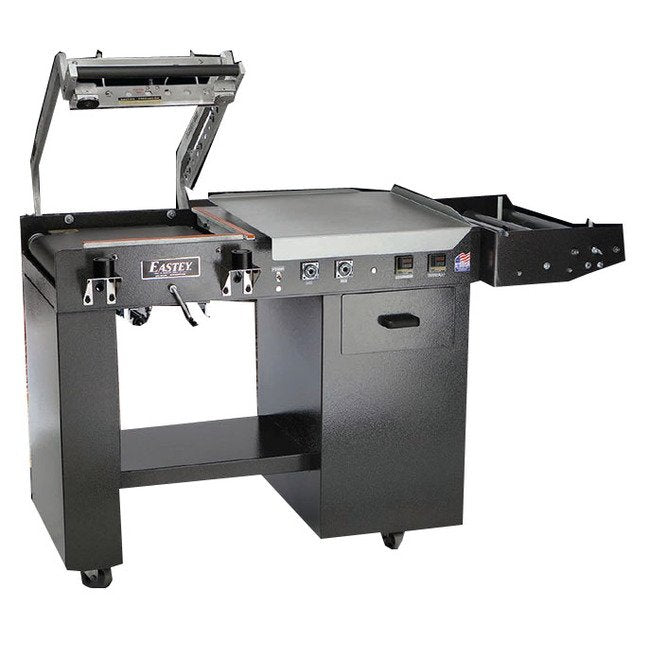

The EASTEY Performance Series 70 Inch Front Seal Dimension Semi-Automatic L-Sealer from the Professional Series is a durable workhorse designed for robust sealing applications. Constructed from 1/4' cold rolled steel, this L-Sealer provides unparalleled strength and reliability. With features like cast seal arms, stainless steel film clamps, and heavy-duty magnet clamping, EASTEY guarantees top-of-the-line performance for sealing various films including polyolefin, polyethylene, and PVC. The all-welded main frame, adjustable seal controls, and adjustable product tray make this L-Sealer versatile and easy to operate, ensuring seamless sealing for a wide range of product sizes.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEASTEY® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY®. See for yourself why EASTEY® has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
167 in | 424 cm
Machine Dimensions Machine Width
53 in | 135 cm
Note Note
Powered film unwind includedMade in the USA
Optional Accessories Optional Accessories

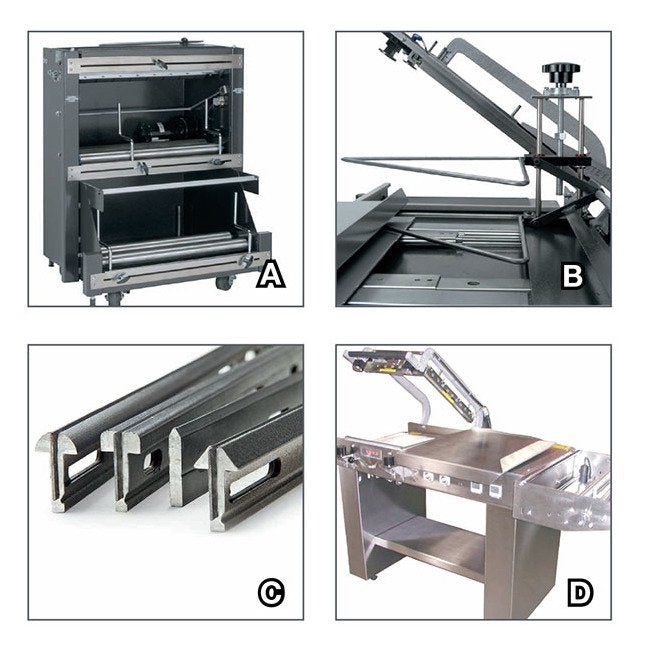

Power film unwindAllows free feeding of film increasing operator efficiency.Film InverterInverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife InsertsHot knife inserts available in Mushroom, Pancake, or Arrow styles.Stainless Steel and Left Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
70 in | 177 cm
Seal Dimensions Side Seal Dimension
40 in | 101 cm
Specifications Maximum Film Roll Outside Diameter
10 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
2200 lb | 997 kg
Specifications Weight
2100 lb | 956 kg
Standard Features Standard Features

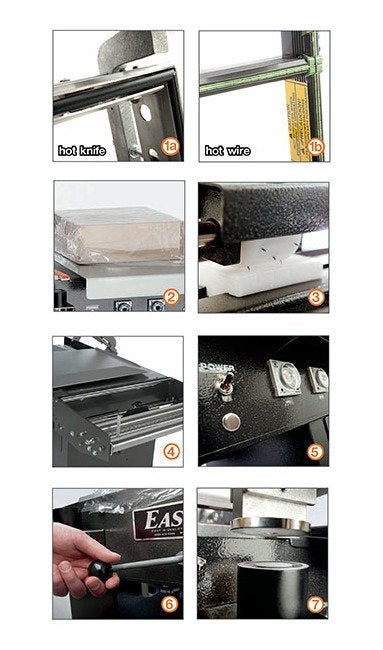

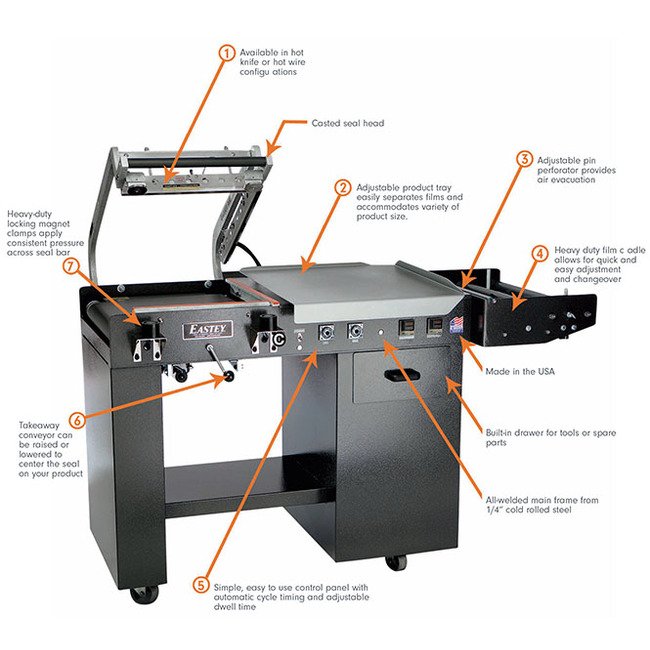

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingAvailable with hot wire or hot knife seal systemsHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480vEasy to use design requires minimal training and maintenance
Standard Power Current
25 A
Standard Power Phase
1
Standard Power Voltage
220 V
