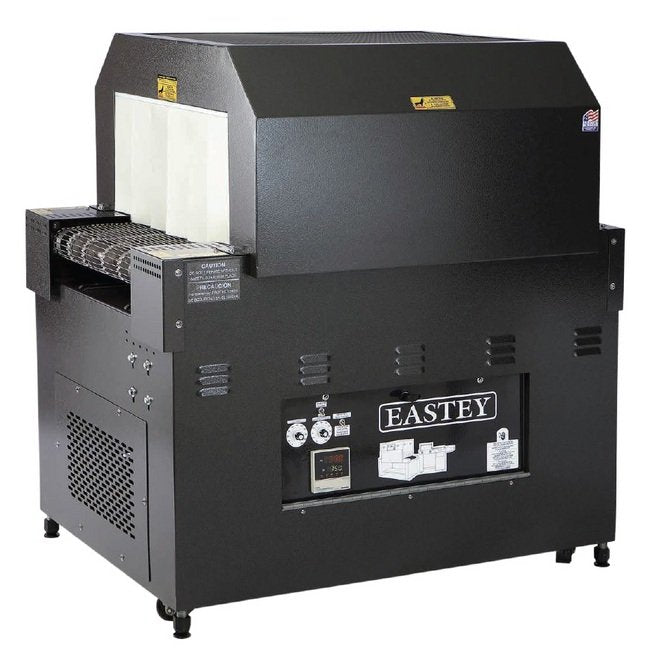

Eastey Performance Series Shrink Tunnel
Eastey Performance Series Shrink Tunnel
SKU:PER-e563ba
Experience top-tier reliability and efficiency with the Eastey Performance Series Shrink Tunnel. Built for sealing polyolefin, polyethylene, and PVC shrink films.
Regular price
$8,199.99
Regular price
Sale price
$8,199.99
Unit price
per
Initiate Order
Eastey Performance Series Shrink Tunnel
$8,199.99
Quantity: 1
Claim Your Seller Account
Eastey Performance Series Shrink Tunnel
$8,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier reliability and efficiency with the Eastey Performance Series Shrink Tunnel. Built on a robust 12-gauge steel frame, this shrink tunnel ensures superior shrinking for a variety of films. With features like adjustable air flow, digital temperature control, and durable construction, this machine offers high performance at a cost-effective price point. Ideal for sealing polyolefin, polyethylene, and PVC shrink films, the Eastey Shrink Tunnel is designed for ease of use, minimal maintenance, and trouble-free operation. Made in the USA, this machine exemplifies Eastey's 25-year legacy of excellence in shrink packaging technology.
Product Specifications
Additional Information Additional Information

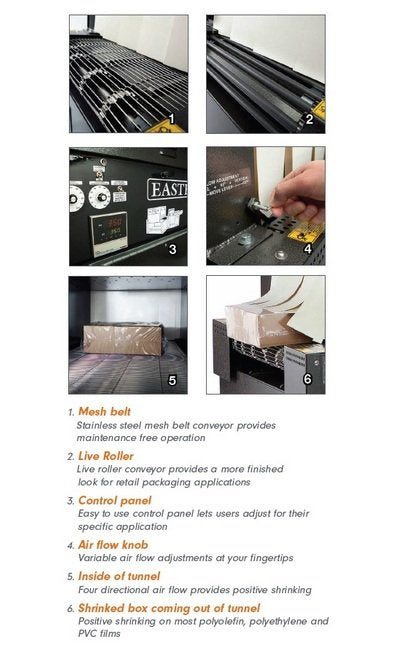

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
10 in | 25 cm
Chamber Dimensions Chamber Length
36 in | 91 cm
Chamber Dimensions Chamber Width
20 in | 51 cm
Machine Dimensions Machine Height B
51 in | 129 cm
Machine Dimensions Machine Length C
49 in | 124 cm
Machine Dimensions Machine Width A
38 in | 97 cm
Rugged Design Rugged Design
Eastey® Performance Series Shrink Tunnels are expertly welded on 12 gauge steel frames and designed to produce superior shrinking on virtually any package. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge steelLive roller or stainless steel mesh belt conveyors; optional "dead" roller conveyor for polyethyleneSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow and air velocity for a variety of products and applicationsBottom air flow adjustment - full on, 1/2 on, full off on ET2010Large ducting creates more air volume inside tunnelOptional side plates (top and sides) for air flow patterning and quick changeover for different products on ET2010Plugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceConveyor speed up to 67 feet per minuteHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
49 in | 124 cm
Technical Specs Conveyor Width
20 in | 51 cm
Technical Specs Shipping Weight
800 lb | 364 kg
Technical Specs Standard Current
25 A | 40 A
Technical Specs Standard Phase
1 | 3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
700 lb | 317 kg
