Eastey Performance Series Shrink Tunnel
Eastey Performance Series Shrink Tunnel
SKU:PER-f8138c
Reliable and cost-effective shrink tunnel for polyolefin, polyethylene, and PVC films. Rugged design with adjustable temperature control, four-directional air flow, and made in the USA.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Eastey Performance Series Shrink Tunnel
$6,999.99
Quantity: 1
Claim Your Seller Account
Eastey Performance Series Shrink Tunnel
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

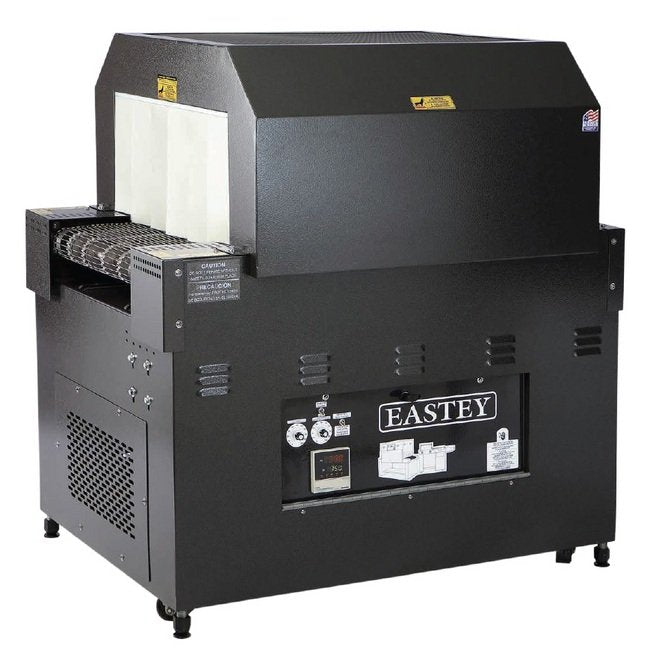

The Eastey Performance Series Shrink Tunnel is a reliable and cost-effective solution designed for positive shrinking of various films including polyolefin, polyethylene, and PVC. Built with a rugged design on a 12 gauge steel frame, it offers features like adjustable temperature control, four-directional air flow, variable air velocity, and delayed cool down for superior shrinking. With easy maintenance, sturdy construction, and made in the USA, this shrink tunnel guarantees trouble-free operation and durability for over 25 years.
Product Specifications
Additional Information Additional Information

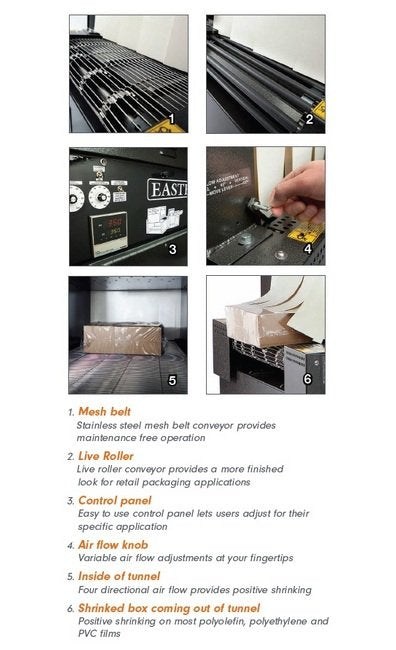

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
8 in | 20 cm
Chamber Dimensions Chamber Length
30 in | 76 cm
Chamber Dimensions Chamber Width
16 in | 41 cm
Machine Dimensions Machine Height B
49 in | 124 cm
Machine Dimensions Machine Length C
40 in | 101 cm
Machine Dimensions Machine Width A
29 in | 74 cm
Rugged Design Rugged Design
Eastey® Performance Series Shrink Tunnels are expertly welded on 12 gauge steel frames and designed to produce superior shrinking on virtually any package. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge steelLive roller or stainless steel mesh belt conveyors; optional "dead" roller conveyor for polyethyleneSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow and air velocity for a variety of products and applicationsBottom air flow adjustment - full on, 1/2 on, full off on ET2010Large ducting creates more air volume inside tunnelOptional side plates (top and sides) for air flow patterning and quick changeover for different products on ET2010Plugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceConveyor speed up to 67 feet per minuteHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
40 in | 102 cm
Technical Specs Conveyor Width
16 in | 41 cm
Technical Specs Shipping Weight
750 lb | 340 kg
Technical Specs Standard Current
25 A | 40 A
Technical Specs Standard Phase
1 | 3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
650 lb | 294 kg
