Eastey Performance Series Shrink Tunnel 64x48
Eastey Performance Series Shrink Tunnel 64x48
SKU:PER-0b409e
Eastey® Performance Series Shrink Tunnel - Reliable shrinking for poly films, adjustable air flow, solid state temp control, stainless steel mesh belt conveyer.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Eastey Performance Series Shrink Tunnel 64x48
$8,999.99
Quantity: 1
Claim Your Seller Account
Eastey Performance Series Shrink Tunnel 64x48
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

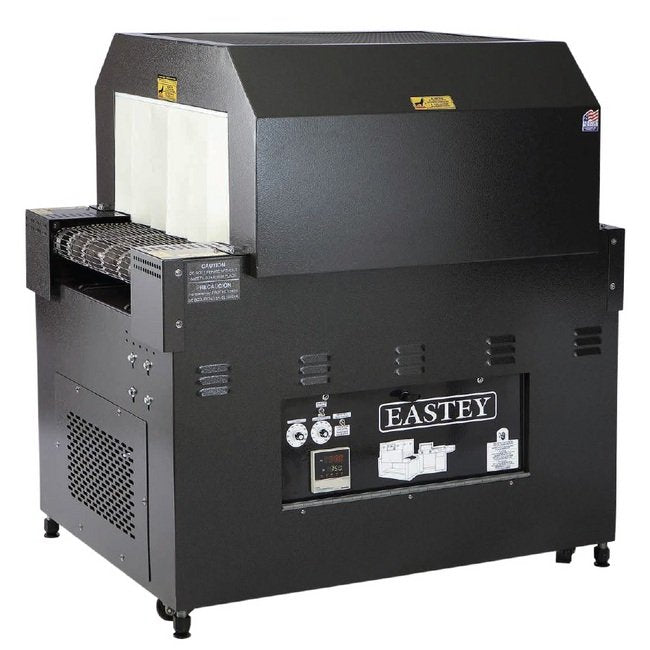

The Performance Series 64 Inch Machine Height and 48 Inch Chamber Length Shrink Tunnel by Eastey® offers reliable and cost-effective shrinking of various films. Constructed on a sturdy 12-gauge steel frame, this shrink tunnel features adjustable air flow, solid state temperature control, and a stainless steel mesh belt conveyor. With durable design and versatile features, it ensures superior shrinking for polyolefin, polyethylene, and PVC films, meeting the stringent requirements of institutional procurement standards.
Product Specifications
Additional Information Additional Information

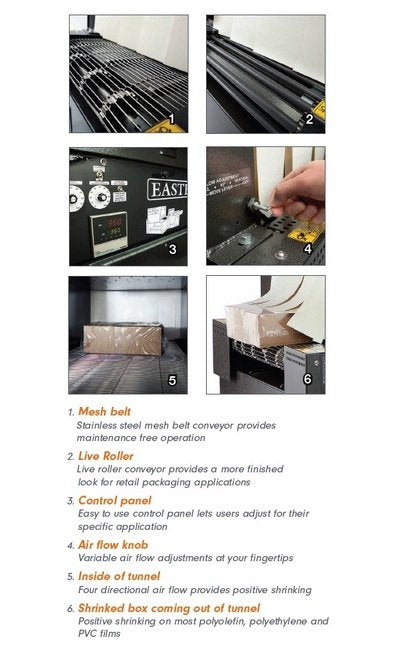

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
10 in | 25 cm
Chamber Dimensions Chamber Length
48 in | 122 cm
Chamber Dimensions Chamber Width
16 in | 41 cm
Machine Dimensions Machine Height B
64 in | 163 cm
Machine Dimensions Machine Length C
61 in | 155 cm
Machine Dimensions Machine Width A
28 in | 72 cm
Rugged Design Rugged Design
Eastey® Performance Series Shrink Tunnels are expertly welded on 12 gauge steel frames and designed to produce superior shrinking on virtually any package. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge steelLive roller or stainless steel mesh belt conveyors; optional "dead" roller conveyor for polyethyleneSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow and air velocity for a variety of products and applicationsBottom air flow adjustment - full on, 1/2 on, full off on ET2010Large ducting creates more air volume inside tunnelOptional side plates (top and sides) for air flow patterning and quick changeover for different products on ET2010Plugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceConveyor speed up to 67 feet per minuteHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
60 in | 152 cm
Technical Specs Conveyor Width
16 in | 41 cm
Technical Specs Shipping Weight
850 lb | 386 kg
Technical Specs Standard Current
25 A | 40 A
Technical Specs Standard Phase
1 | 3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
750 lb | 294 kg
