Eastey Professional Series 100in Front Seal & 40in Side Seal Automatic L-Sealer
Eastey Professional Series 100in Front Seal & 40in Side Seal Automatic L-Sealer
SKU:PRO-7e7990
Enjoy efficiency and reliability with Eastey's Professional Series Automatic L-Sealer for polyolefin, polyethylene, and PVC films. Designed for durability and ease of use.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
Eastey Professional Series 100in Front Seal & 40in Side Seal Automatic L-Sealer
$16,999.00
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 100in Front Seal & 40in Side Seal Automatic L-Sealer
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

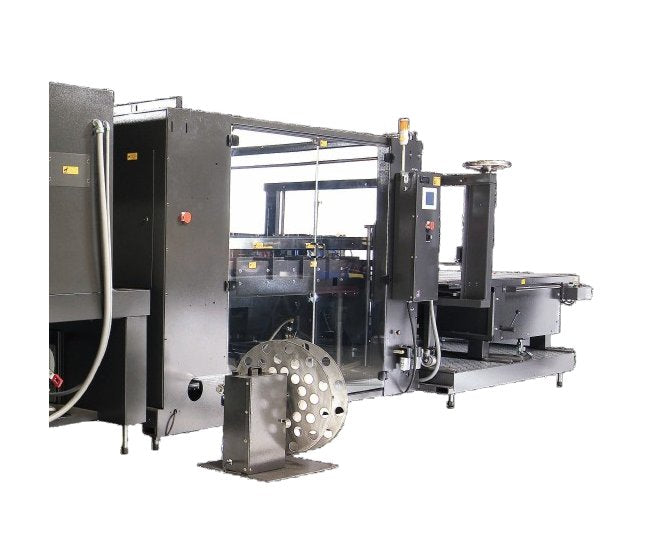

The Eastey Professional Series Automatic L-Sealer is expertly designed for large or heavy products, using 1/4 cold rolled steel for durability. It offers consistent sealing for polyolefin, polyethylene, and PVC films. With features like automatic self-centering seal system, soft start conveyors, and adjustable film alignment, this machine ensures efficiency and reliability for a wide range of applications. The PLC control, variable speed conveyors, and ergonomic design make it user-friendly while meeting institutional procurement standards.
Product Specifications
Features Features

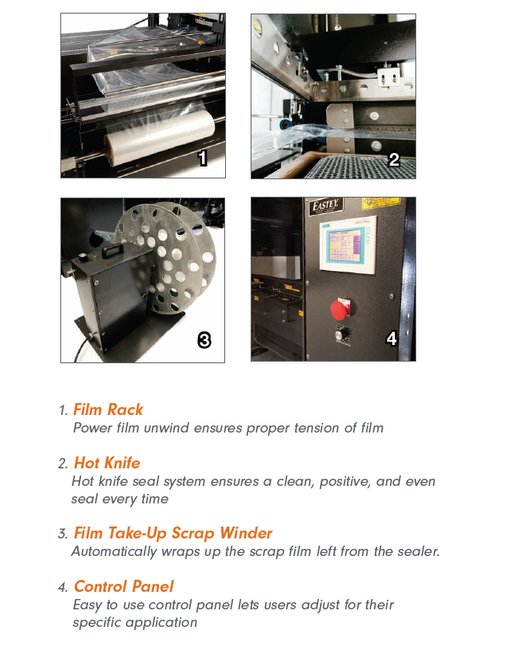

Designed to seal most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 1/4" cold rolled steelSoft start infeed and outfeed conveyors to reduce shifting of productsVariable speed infeed and outfeed conveyorsSide adjustable film rack for perfect alignmentSeal head casting equipped with pneumatic air cylinder for automatic sealingHot knife seal available with mushroom (standard), pancake, arrow, or poly insertsConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timePLC controlled with product indexingFilm tracking wheels keep film in placePower film unwind ensures proper tension of filmMultiple pin perforators provide air evacuationPower Film take-up scrap winder includedCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenanceAvailable in 220v, or 480vMade in the USA
Proven Reliability Efficient Design Proven Reliability Efficient
Designed specifically for large or heavy products that need to be fully enclosed, Eastey® Professional Series Automatic L-Sealers are constructed of expertly welded 1/4 cold rolled steel and designed to handle the day to day abuse of even the most challenging automatic sealing applications. The efficient automatic self centering seal system allows users to automatically seal product that is placed on the infeed conveyor for a consistent seal every time.
Technical Specs Brands
Eastey®
Technical Specs Front Seal Size
100 in | 254 cm
Technical Specs Machine Height
74 in | 187 cm
Technical Specs Machine Length
213 in | 541 cm
Technical Specs Machine Width
86 in | 218 cm
Technical Specs Maximum Film Roll Outside Diameter
0 to 12 in
Technical Specs Maximum Film Width
0 to 60 in
Technical Specs Pressure
60 psi
Technical Specs Shipping Weight
6000 lb | 2721 kg
Technical Specs Side Seal Size
40 in | 102 cm
Technical Specs Standard Current
30 A | 35 A
Technical Specs Standard Phase
1
Technical Specs Standard Voltage
220 V
Technical Specs Weight
5800 lb | 2630 kg
