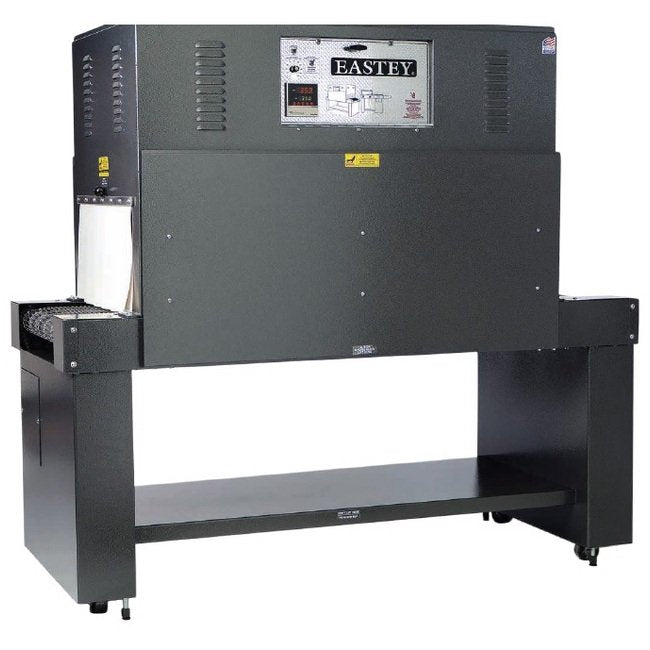

Eastey Professional Series 33 Inch Shrink Tunnel
Eastey Professional Series 33 Inch Shrink Tunnel
SKU:PRO-1940c0
Experience durability and precision with the Eastey Professional Series 33 Inch Shrink Tunnel.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Eastey Professional Series 33 Inch Shrink Tunnel
$8,999.00
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 33 Inch Shrink Tunnel
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eastey Professional Series 33 Inch Shrink Tunnel is a robust and durable solution designed for the most demanding shrink wrap applications. Constructed from 12 gauge cold-rolled steel, this shrink tunnel provides unmatched strength and reliability. With features like adjustable temperature control, variable air flow, and sturdy design, it ensures precise and efficient shrinking of a wide range of films. Ideal for polyolefin, polyethylene, and PVC films, this tunnel is a versatile choice for commercial and industrial packaging needs.
Product Specifications
Additional Information Additional Information

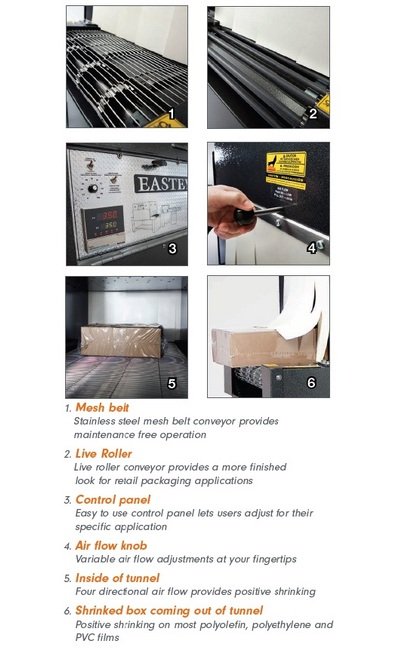

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
4 to 20 in | 10 to 51 cm
Chamber Dimensions Chamber Length
52 in | 132 cm
Chamber Dimensions Chamber Width
20 in | 51 cm
Machine Dimensions Machine Height B
56 to 72 in | 142 to 183 cm
Machine Dimensions Machine Length C
74 in | 188 cm
Machine Dimensions Machine Width A
33 in | 84 cm
Proven Reliability For Your Needs Proven Reliability For Your Ne
They are designed and built to give you all the performance features needed for positive shrinking a wide variety of films including polyolefin, polyethylene, and PVC. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to shrink most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge cold rolled steelLive roller, "dead" roller, or stainless steel mesh belt conveyor standard; optional plastic belt conveyorSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelPlugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceLive roller conveyor speed up to 67 fpm, mesh belt conveyor speed up to 100 fpmHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingStainless steel models available on ET20220v 3-phase standard, some models available in 220v single-phase or 480v 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
72 in | 183 cm
Technical Specs Conveyor Width
20 in | 51 cm
Technical Specs Models
ET2008 | ET2012 | ET2016 | ET2020
Technical Specs Shipping Weight
1200 lb | 546 kg
Technical Specs Standard Current
50 A
Technical Specs Standard Phase
3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
900 lb | 410 kg
