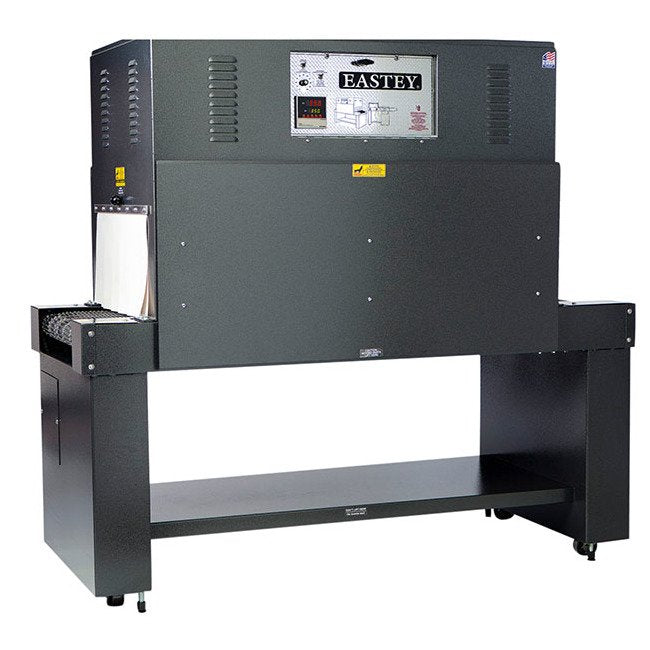

EASTEY Professional Series 33 Inch Shrink Tunnel
EASTEY Professional Series 33 Inch Shrink Tunnel
SKU:PAC-1940c0
Reliable EASTEY Professional Series Shrink Tunnel for durable and efficient shrink wrapping. Perfect for polyolefin, polyethylene, and PVC films.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
EASTEY Professional Series 33 Inch Shrink Tunnel
$8,499.99
Quantity: 1
Claim Your Seller Account
EASTEY Professional Series 33 Inch Shrink Tunnel
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EASTEY Professional Series 33 Inch Shrink Tunnel is a robust and reliable packaging solution that is expertly welded from 12 gauge cold rolled steel, ensuring unmatched durability for even the most demanding shrink wrap applications. With a conveyor width of 20 inches and a chamber height ranging from 4 to 20 inches, this shrink tunnel is designed to accommodate a wide variety of films including polyolefin, polyethylene, and PVC. Featuring adjustable digital solid-state temperature control, variable air flow options, and a stainless steel mesh belt conveyor, this shrink tunnel offers exceptional performance and reliability. EASTEY has been a trusted leader in the shrink packaging industry for over 25 years, delivering top-of-the-line features and durability that institutions and consumers can rely on.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSThey are designed and built to give you all the performance features needed for positive shrinking a wide variety of films including polyolefin, polyethylene, and PVC. Variable four-direction air flow, variable air velocity and delayed cool down are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Chamber Dimensions Chamber Height
4 to 20 in | 10 to 51 cm
Chamber Dimensions Chamber Length
52 in | 132 cm
Chamber Dimensions Chamber Width
20 in | 51 cm
Key Features Key Features

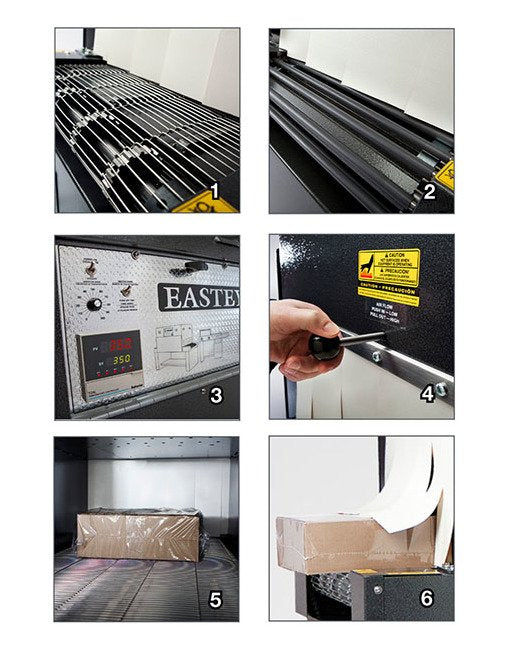

Mesh beltStainless steel mesh belt conveyor provides maintenance free operationLive RollerLive roller conveyor provides a more finished look for retail packaging applicationsControl panelEasy to use control panel lets users adjust for their specific applicationAir flow knobVariable air flow adjustments at your fingertipsInside of tunnelFour directional air flow provides positive shrinkingShrinked box coming out of tunnelPositive shrinking on most polyolefin, polyethylene and PVC films
Machine Dimensions Machine Height B
56 to 72 in | 142 to 183 cm
Machine Dimensions Machine Length C
74 in | 188 cm
Machine Dimensions Machine Width A
33 in | 84 cm
Note Note
Made in the USA
Specifications Alternate Item Number
ET2008 | ET2012 | ET2016 | ET2020
Specifications Conveyor Length
72 in | 183 cm
Specifications Conveyor Width
20 in | 51 cm
Specifications Live Roller Conveyor Speed
0 to 67 ft/min
Specifications Mesh Belt Conveyor Speed
0 to 100 ft/min
Specifications Shipping Weight
1200 lb | 544 kg
Specifications Weight
900 lb | 408 kg
Standard Features Standard Features
Designed to shrink most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge cold rolled steelLive roller, "dead" roller, or stainless steel mesh belt conveyor standard; optional plastic belt conveyorSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelPlugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingStainless steel models available on ET20220v 3-phase standard, some models available in 480v 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
50 A
Standard Power Phase
3
Standard Power Voltage
220 V
