Eastey Professional Series 36x16 Bundling Shrink Tunnel
Eastey Professional Series 36x16 Bundling Shrink Tunnel
SKU:PRO-858911
Eastey's top-of-the-line shrink tunnel for reliable polyethylene film shrinking.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Eastey Professional Series 36x16 Bundling Shrink Tunnel
$18,999.00
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 36x16 Bundling Shrink Tunnel
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

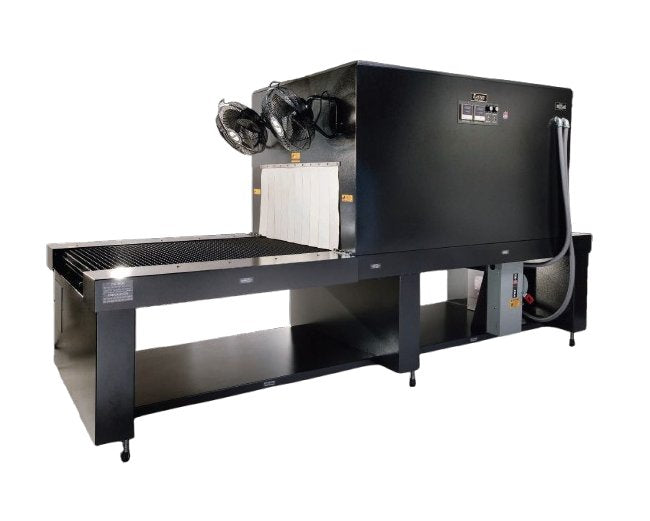

The Eastey Professional Series 36x16 Bundling Shrink Tunnel is a top-of-the-line solution for reliable, high-quality shrink packaging. Designed for bundling applications, this shrink tunnel features a rugged 12-gauge steel frame, adjustable digital temperature control, and four-directional air flow for uniform shrinking. With a 78" chamber length and high temperature belting, it ensures proper shrinking of polyethylene film. This Made in the USA tunnel is user-friendly, easy to maintain, and built for trouble-free operation, making it a cost-effective choice for businesses seeking exceptional shrink performance.
Product Specifications
Features Features

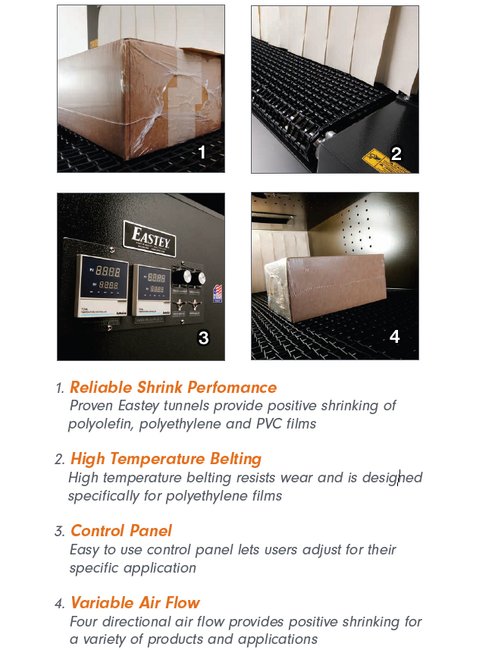

Designed to shrink polyethylene film.All-welded main frame from 12 gauge steel78" chamber length to ensure proper shrinking of filmHigh temperature belting resists wearSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelAirflow extended to the end of the chamber sides4' product cooling conveyor on exit endExit cooling fans accelerate shrinkingDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingAvailable in 220v - single or 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Rugged Design Rugged Design
Eastey®'s top of the line bundling tunnels are expertly welded on 12 gauge steel frames and designed to handle the day to day abuse of most bundling applications. Each tunnel utilizes four-directional variable air flow to provide a positive shrink. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Technical Specs Brands
Eastey®
Technical Specs Chamber Height
16 to 20 in | 40 to 50 cm
Technical Specs Chamber Length
78 in | 198 cm
Technical Specs Chamber Width
36 in | 91 cm
Technical Specs Conveyor Length
147 in | 373 cm
Technical Specs Machine Height B
56 to 72 in | 142 to 182 cm
Technical Specs Machine Length C
149 in | 378 cm
Technical Specs Machine Width A
55 in | 139 cm
Technical Specs Shipping Weight
2300 lb | 1043 kg
Technical Specs Standard Current
60 A
Technical Specs Standard Phase
3
Technical Specs Standard Voltage
480 V
Technical Specs Weight
2200 lb | 997 kg
