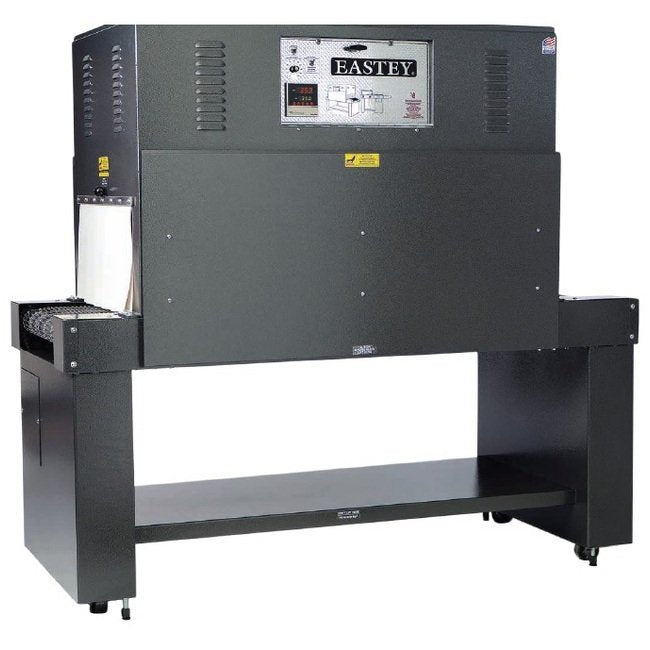

Eastey Professional Series 49 Inch Shrink Tunnel
Eastey Professional Series 49 Inch Shrink Tunnel
SKU:PRO-64a334
Experience durability and precision with the Eastey Professional 49 Inch Shrink Tunnel. Optimal for diverse film shrinking applications.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Eastey Professional Series 49 Inch Shrink Tunnel
$8,499.99
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 49 Inch Shrink Tunnel
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eastey Professional Series 49 Inch Shrink Tunnel is the pinnacle of durability and performance for demanding shrink applications. Crafted from 12 gauge cold-rolled steel, this tunnel offers unmatched strength and reliability. With features like variable air flow, solid state temperature control, and stainless steel conveyor options, it ensures precise and efficient shrinking of various films. Backed by over 25 years of industry leadership, Eastey sets the standard for quality and innovation in shrink packaging.
Product Specifications
Additional Information Additional Information

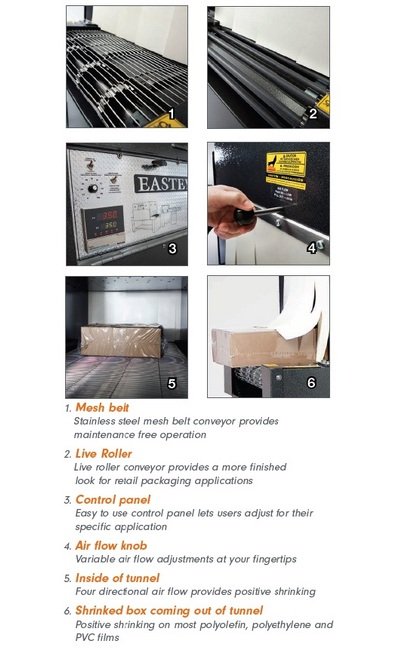

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
4 to 20 in | 10 to 51 cm
Chamber Dimensions Chamber Length
52 in | 132 cm
Chamber Dimensions Chamber Width
36 in | 91 cm
Machine Dimensions Machine Height B
56 to 72 in | 142 to 183 cm
Machine Dimensions Machine Length C
74 in | 188 cm
Machine Dimensions Machine Width A
49 in | 124 cm
Proven Reliability For Your Needs Proven Reliability For Your Ne
They are designed and built to give you all the performance features needed for positive shrinking a wide variety of films including polyolefin, polyethylene, and PVC. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to shrink most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge cold rolled steelLive roller, "dead" roller, or stainless steel mesh belt conveyor standard; optional plastic belt conveyorSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelPlugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceLive roller conveyor speed up to 67 fpm, mesh belt conveyor speed up to 100 fpmHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingStainless steel models available on ET20220v 3-phase standard, some models available in 220v single-phase or 480v 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
72 in | 183 cm
Technical Specs Conveyor Width
36 in | 91 cm
Technical Specs Models
ET3608 | ET3612 | ET3616 | ET3620
Technical Specs Shipping Weight
1600 lb | 728 kg
Technical Specs Standard Current
50 to 60 A
Technical Specs Standard Phase
3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
1300 lb | 591 kg
