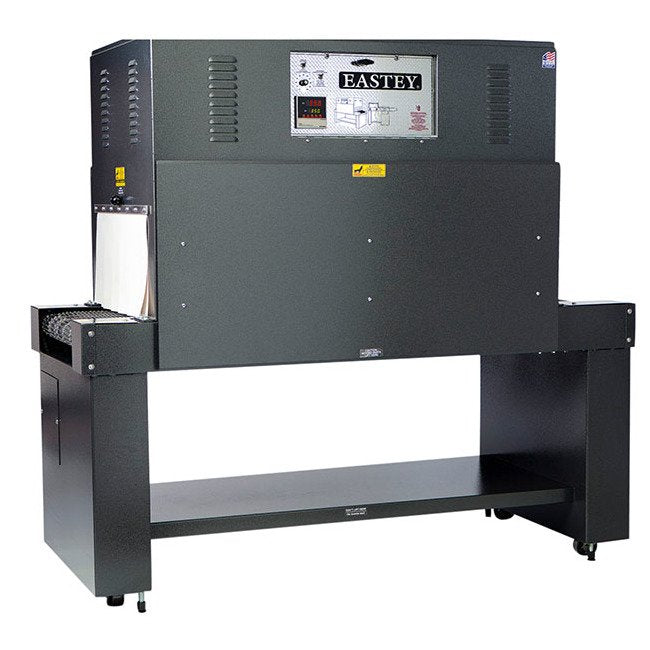

The EASTEY Professional Series 49" Shrink Tunnel is a heavy-duty workhorse designed to meet the most demanding shrink wrapping applications in both consumer and institutional settings. Constructed from expertly welded 12 gauge cold rolled steel, this shrink tunnel is built for unmatched durability and strength. It features a 36" conveyor width, variable air flow and velocity, and adjustable digital solid state temperature control, making it versatile for shrinking a wide variety of films like polyolefin, polyethylene, and PVC. With a focus on reliability and performance, EASTEY has been a trusted name in the shrink packaging industry for over 25 years.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSThey are designed and built to give you all the performance features needed for positive shrinking a wide variety of films including polyolefin, polyethylene, and PVC. Variable four-direction air flow, variable air velocity and delayed cool down are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Chamber Dimensions Chamber Height
4 to 20 in | 10 to 51 cm
Chamber Dimensions Chamber Length
52 in | 132 cm
Chamber Dimensions Chamber Width
36 in | 91 cm
Key Features Key Features

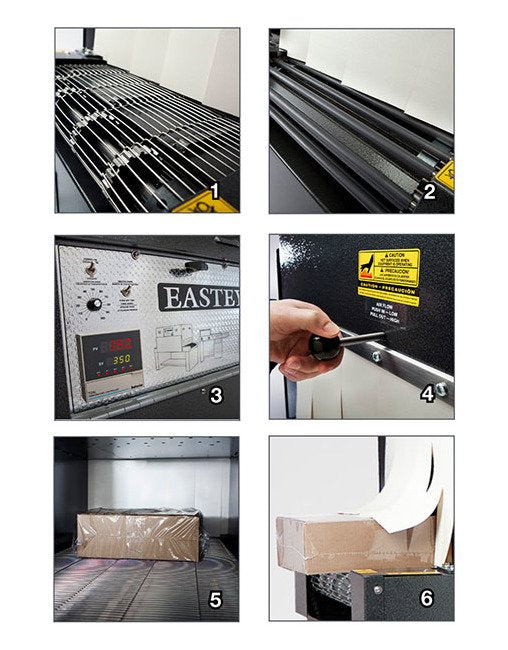

Mesh beltStainless steel mesh belt conveyor provides maintenance free operationLive RollerLive roller conveyor provides a more finished look for retail packaging applicationsControl panelEasy to use control panel lets users adjust for their specific applicationAir flow knobVariable air flow adjustments at your fingertipsInside of tunnelFour directional air flow provides positive shrinkingShrinked box coming out of tunnelPositive shrinking on most polyolefin, polyethylene and PVC films
Machine Dimensions Machine Height B
56 to 72 in | 142 to 183 cm
Machine Dimensions Machine Length C
74 in | 188 cm
Machine Dimensions Machine Width A
49 in | 124 cm
Note Note
Made in the USA
Specifications Alternate Item Number
ET3608 | ET3612 | ET3616 | ET3620
Specifications Conveyor Length
72 in | 183 cm
Specifications Conveyor Width
36 in | 91 cm
Specifications Live Roller Conveyor Speed
0 to 67 ft/min
Specifications Mesh Belt Conveyor Speed
0 to 100 ft/min
Specifications Shipping Weight
1600 lb | 726 kg
Specifications Weight
1300 lb | 590 kg
Standard Features Standard Features
Designed to shrink most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge cold rolled steelLive roller, "dead" roller, or stainless steel mesh belt conveyor standard; optional plastic belt conveyorSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsFour-directional air flow provides positive shrinkingVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelPlugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratching220v 3-phase standard, some models available in 480v 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operation
Standard Power Current
50 A | 60 A
Standard Power Phase
3
Standard Power Voltage
220 V
