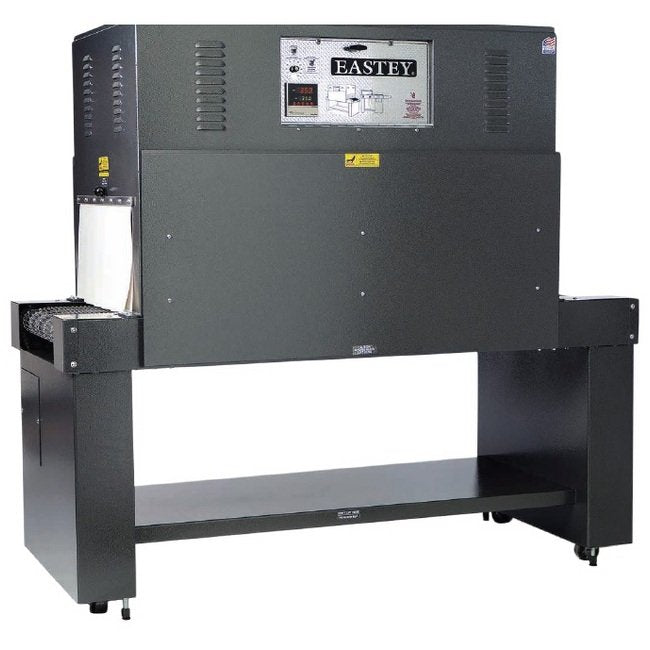

Eastey Professional Series 61" Shrink Tunnel
Eastey Professional Series 61" Shrink Tunnel
SKU:PRO-f59e47
Experience unmatched durability and performance with the Eastey Professional 61" Shrink Tunnel. Optimal for polyolefin, polyethylene, and PVC films.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Eastey Professional Series 61" Shrink Tunnel
$14,999.99
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 61" Shrink Tunnel
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eastey Professional Series 61" Shrink Tunnel is a robust solution designed to meet the most demanding shrink wrap applications. Crafted from expertly welded 12 gauge cold-rolled steel, this shrink tunnel offers unparalleled durability and strength. With features like adjustable digital temperature control, variable air flow, and a sturdy frame, Eastey guarantees reliable performance for shrinking various films such as polyolefin, polyethylene, and PVC. Ideal for both consumer and institutional buyers seeking long-lasting, top-of-the-line shrink wrapping capabilities.
Product Specifications
Additional Information Additional Information

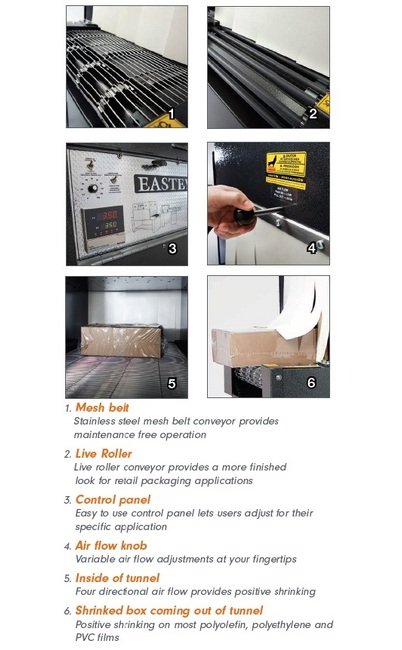

Mesh belt - Stainless steel mesh belt conveyor provides maintenance free operationLive Roller - Live roller conveyor provides a more finished look for retail packaging applicationsControl panel - Easy to use control panel lets users adjust for their specific applicationAir flow knob - Variable air flow adjustments at your fingertipsInside of tunnel - Four directional air flow provides positive shrinkingShrinked box coming out of tunnel - Positive shrinking on most polyolefin, polyethylene and PVC films
Chamber Dimensions Chamber Height
4 to 20 in | 10 to 51 cm
Chamber Dimensions Chamber Length
52 in | 132 cm
Chamber Dimensions Chamber Width
48 in | 122 cm
Machine Dimensions Machine Height B
56 to 72 in | 142 to 183 cm
Machine Dimensions Machine Length C
74 in | 188 cm
Machine Dimensions Machine Width A
61 in | 155 cm
Proven Reliability For Your Needs Proven Reliability For Your Ne
They are designed and built to give you all the performance features needed for positive shrinking a wide variety of films including polyolefin, polyethylene, and PVC. Variable four-direction air flow, variable air velocity, and delayed cool down are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Standard Features Standard Features
Designed to shrink most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 12 gauge cold rolled steelLive roller, "dead" roller, or stainless steel mesh belt conveyor standard; optional plastic belt conveyorSealed bearings (not bushings) on drive and idler shaftsAdjustable digital solid state temperature control for a variety of filmsVariable air flow for a variety of products and applicationsLarge ducting creates more air volume inside tunnelPlugs available for patterned air flowDelayed cool down and over temperature protectionFold down electrical control panel for easy maintenanceLive roller conveyor speed up to 67 fpm, mesh belt conveyor speed up to 100 fpmHeavy duty casters for transportation within plantLeveling legs provide sturdy base once in placeCustom two part epoxy finish resists scratchingStainless steel models available on ET20220v 3-phase standard, some models available in 220v single-phase or 480v 3-phaseEasy to use design requires minimal training, maintenance, and trouble free operationMade in the USA
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
72 in | 183 cm
Technical Specs Conveyor Width
48 in | 122 cm
Technical Specs Models
ET4808 | ET4812 | ET4816 | ET4820
Technical Specs Shipping Weight
2000 lb | 910 kg
Technical Specs Standard Current
80 A | 90 A | 110 A
Technical Specs Standard Phase
3
Technical Specs Standard Voltage
220 V
Technical Specs Weight
1700 lb | 773 kg
