Eastey Professional Series 70" Automatic Bundler
Eastey Professional Series 70" Automatic Bundler
SKU:PRO-3555f2
Efficient, reliable, and durable 70" Automatic Bundler for seamless sealing and packaging.
Regular price
$26,999.00
Regular price
Sale price
$26,999.00
Unit price
per
Initiate Order
Eastey Professional Series 70" Automatic Bundler
$26,999.00
Quantity: 1
Claim Your Seller Account
Eastey Professional Series 70" Automatic Bundler
$26,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

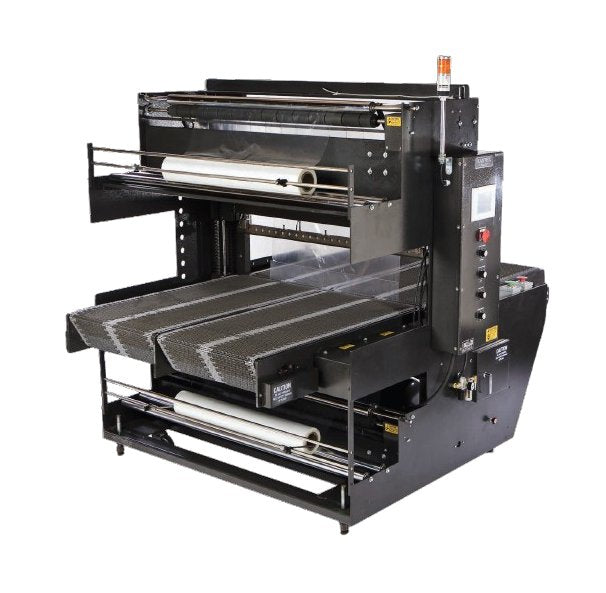

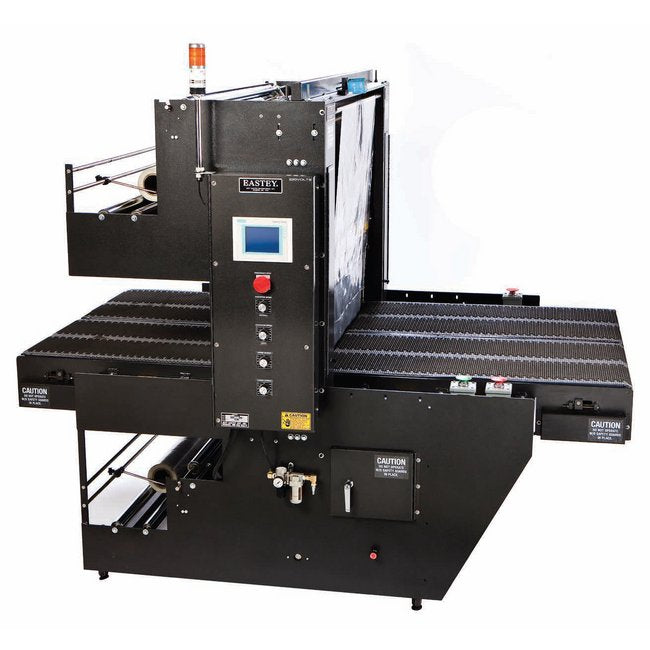

The Eastey Professional Series 70" Automatic Bundler is a top-of-the-line solution for efficient and reliable automatic bundling. With a seal width of 70 inches and rugged design featuring expertly welded frames, this bundler is built to withstand demanding applications. It offers a hot knife seal system for polyethylene films, adjustable product pass-through height, self-tracking conveyor belt, and optional password protection for added security. Made in the USA, this bundler combines durability, ease of use, and flexibility for seamless operation.
Product Specifications
Features Features

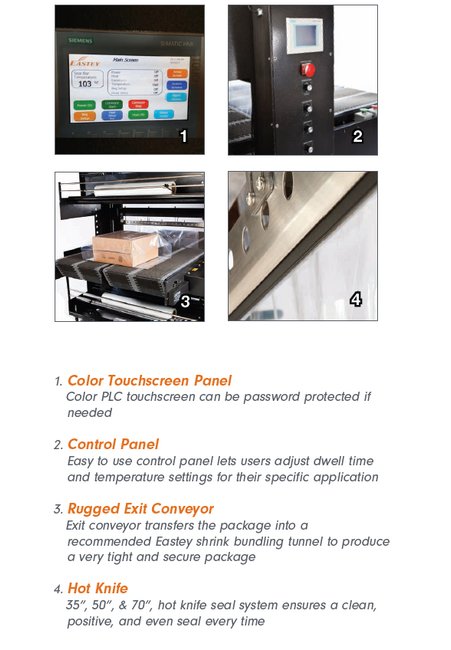

Designed to seal polyethylene films35", 50", and 70" wide hot knife seal systemUp to 22" adjustable product pass through heightInfeed product guides where necessaryUpper and lower powered film unwind for smooth feed of filmFilm loading from left or right sideColor PLC touchscreen operation for easy adjustmentsOptional password protectionSelf tracking conveyor belt and product indexingFlexibility for fully automatic or single product operationLeft or right angle infeed conveyors availableManual infeed availableAll-welded main frame from 1/4" cold rolled steelBases supplied with locking casters for easy transportLeveling legs to provide study baseDurable custom two-part epoxy finish resists scratchingMade in the USAEasy to use design requires minimal training, maintenance, and trouble free operation
Options Options
Push button manual operationLeft or right angle powered infeed with product pusher
Rugged Design Rugged Design
Eastey®'s automatic bundler's are expertly welded on 1/4" cold rolled steel frames and designed to handle the day to day abuse of even the most demanding bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and an upper and lower power film unwind for ease of use. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Technical Specs Brands
Eastey®
Technical Specs Conveyor Length
72 in | 182 cm
Technical Specs Conveyor Width
98 in | 248 cm

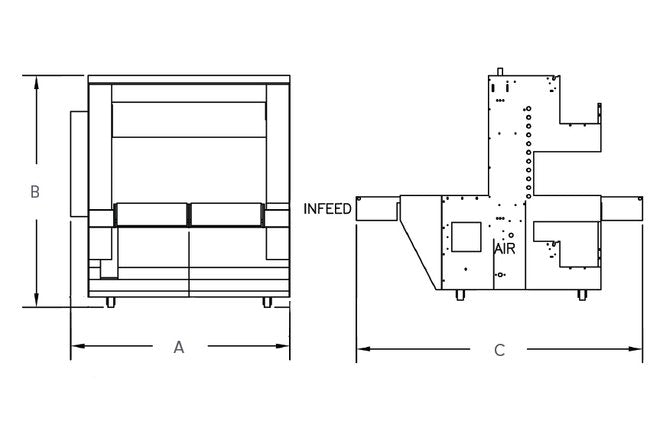

Technical Specs Machine Height B
79 in | 200 cm
Technical Specs Machine Length C
98 in | 248 cm
Technical Specs Machine Width A
96 in | 243 cm
Technical Specs Maximum Film Roll Outside Diameter
12 in
Technical Specs Maximum Film Width
68 in
Technical Specs Optional Voltage
480 V
Technical Specs Seal Height
20 in | 51 cm
Technical Specs Seal Width
70 in | 177 cm
Technical Specs Shipping Weight
3500 lb | 1587 kg
Technical Specs Standard Conveyor Length
4 ft
Technical Specs Standard Current
20 A
Technical Specs Standard Phase
1
Technical Specs Standard Voltage
220 V
Technical Specs Weight
3300 lb | 1496 kg
