EASTEY Professional Series 70 Inch Automatic L-Sealer
EASTEY Professional Series 70 Inch Automatic L-Sealer
SKU:PAC-2ec296
Efficiently seal large products with EASTEY Professional 70 Inch L-Sealer. Durable construction, automatic self-centering seal system, and advanced features for consistent, reliable seals.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
EASTEY Professional Series 70 Inch Automatic L-Sealer
$12,999.99
Quantity: 1
Claim Your Seller Account
EASTEY Professional Series 70 Inch Automatic L-Sealer
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

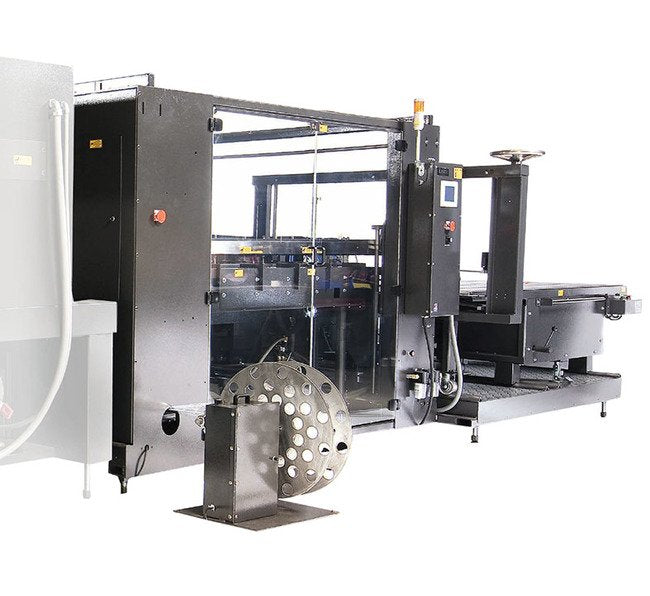

The EASTEY Professional Series 70 Inch Front Seal Dimension Automatic L-Sealer is a durable solution designed for large or heavy products that require full enclosure. Constructed with expertly welded 1/4 cold rolled steel, this automatic L-sealer is built to withstand demanding sealing applications. It features a self-centering seal system for consistent seals on various films including polyolefin, polyethylene, and PVC. With advanced features like soft start conveyors, hot knife seal system, and film tension control, this machine ensures efficient and reliable sealing for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY, EFFICIENT DESIGNDesigned specifically for large or heavy products that need to be fully enclosed, EASTEY Professional Series Automatic L-Sealers are constructed of expertly welded 1/4 cold rolled steel and designed to handle the day to day abuse of even the most challenging automatic sealing applications. The efficient automatic self-centering seal system allows users to automatically seal product that is placed on the infeed conveyor for a consistent seal every time.
Key Features Key Features

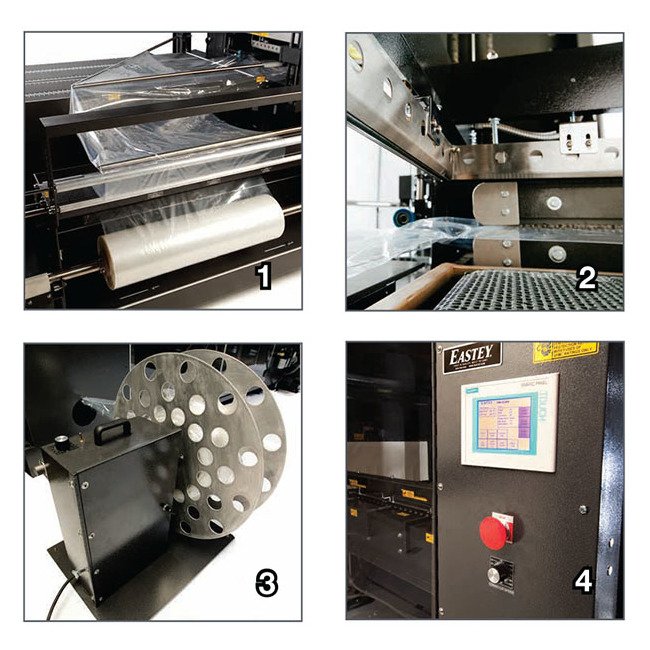

Film RackPower film unwind ensures proper tension of filmHot KnifeHot knife seal system ensures a clean, positive, and even seal every timeFilm Take-Up Scrap WinderAutomatically wraps up the scrap film left from the sealerControl PanelEasy to use control panel lets users adjust for their specific application
Machine Dimensions Machine Height
74 in | 187 cm
Machine Dimensions Machine Length
183 in | 464 cm
Machine Dimensions Machine Width
86 in | 218 cm
Note Note
Made in the USA
Seal Dimensions Front Seal Dimension
70 in | 178 cm
Seal Dimensions Side Seal Dimension
30 in | 76 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 60 in
Specifications Shipping Weight
5200 lb | 2358 kg
Specifications Weight
5000 lb | 2267 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 1/4" cold rolled steelSoft start infeed and outfeed conveyors to reduce shifting of productsVariable speed infeed and outfeed conveyorsSide adjustable film rack for perfect alignmentSeal head casting equipped with pneumatic air cylinder for automatic sealingHot knife seal available with mushroom (standard), pancake, arrow, or poly insertsConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timePLC controlled with product indexingFilm tracking wheels keep film in placePower film unwind ensures proper tension of filmMultiple pin perforators provide air evacuationPower Film take-up scrap winder includedCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenanceSide seal size 30", 40" or 50"; front seal size 50", 70", or 100"60 PSIAvailable in 220v, or 480v
Standard Power Current
30 A | 35 A
Standard Power Phase
1
Standard Power Voltage
220 V
