Eastey Professional Series Automatic L-Sealer 70" Front Seal, 30" Side Seal
Eastey Professional Series Automatic L-Sealer 70" Front Seal, 30" Side Seal
SKU:PRO-2ec296
Efficiently seal polyolefin, polyethylene, and PVC films with precision using Eastey's 70" Front Seal, 30" Side Seal Automatic L-Sealer.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Eastey Professional Series Automatic L-Sealer 70" Front Seal, 30" Side Seal
$18,999.00
Quantity: 1
Claim Your Seller Account
Eastey Professional Series Automatic L-Sealer 70" Front Seal, 30" Side Seal
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

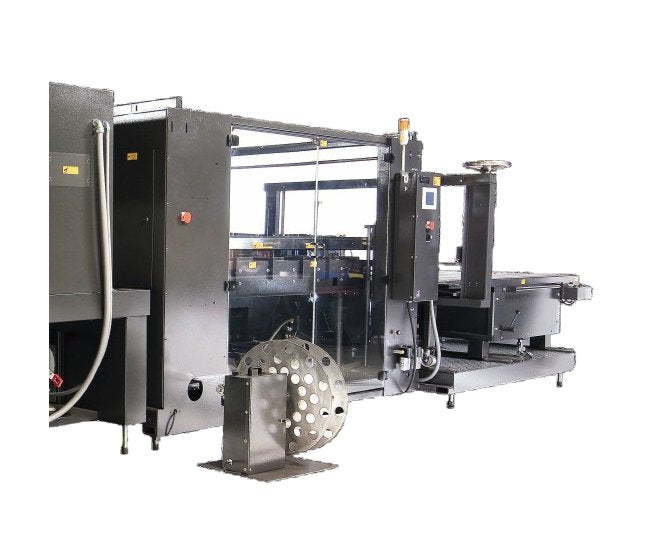

The Eastey Professional Series 70 Inch Front Seal, 30 Inch Side Seal Automatic L-Sealer is a robust solution for efficiently sealing a wide range of films including polyolefin, polyethylene, and PVC. Constructed from durable 1/4" cold rolled steel, this machine is designed for reliability and performance under demanding conditions. Features like automatic self-centering seal system, variable speed conveyors, and hot knife seal with various inserts ensure consistent and precise sealing. With PLC control, film tracking wheels, and power film unwind, it offers ease of use and optimal film tension for professional packaging operations.
Product Specifications
Features Features

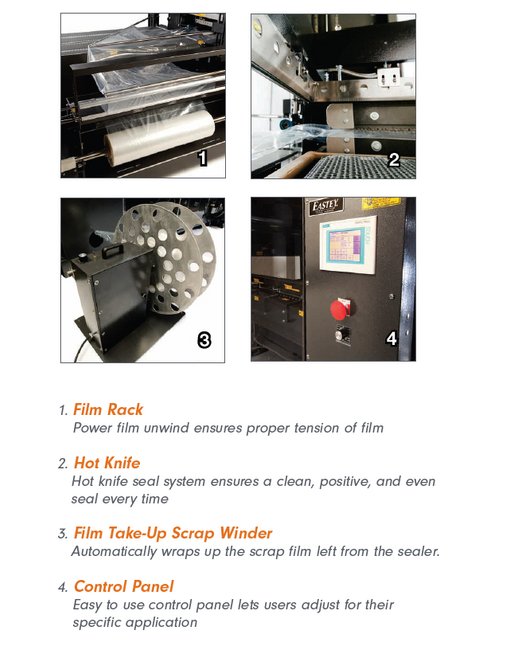

Designed to seal most polyolefin, polyethylene, and PVC shrink filmsAll-welded main frame from 1/4" cold rolled steelSoft start infeed and outfeed conveyors to reduce shifting of productsVariable speed infeed and outfeed conveyorsSide adjustable film rack for perfect alignmentSeal head casting equipped with pneumatic air cylinder for automatic sealingHot knife seal available with mushroom (standard), pancake, arrow, or poly insertsConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timePLC controlled with product indexingFilm tracking wheels keep film in placePower film unwind ensures proper tension of filmMultiple pin perforators provide air evacuationPower Film take-up scrap winder includedCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenanceAvailable in 220v, or 480vMade in the USA
Proven Reliability Efficient Design Proven Reliability Efficient
Designed specifically for large or heavy products that need to be fully enclosed, Eastey® Professional Series Automatic L-Sealers are constructed of expertly welded 1/4 cold rolled steel and designed to handle the day to day abuse of even the most challenging automatic sealing applications. The efficient automatic self centering seal system allows users to automatically seal product that is placed on the infeed conveyor for a consistent seal every time.
Technical Specs Brands
Eastey®
Technical Specs Front Seal Size
70 in | 178 cm
Technical Specs Machine Height
74 in | 187 cm
Technical Specs Machine Length
183 in | 464 cm
Technical Specs Machine Width
86 in | 218 cm
Technical Specs Maximum Film Roll Outside Diameter
0 to 12 in
Technical Specs Maximum Film Width
0 to 60 in
Technical Specs Pressure
60 psi
Technical Specs Shipping Weight
5200 lb | 2358 kg
Technical Specs Side Seal Size
30 in | 76 cm
Technical Specs Standard Current
30 A | 35 A
Technical Specs Standard Phase
1
Technical Specs Standard Voltage
220 V
Technical Specs Weight
5000 lb | 2267 kg
