Eastey SB-2EX Random Side Belt Case Tapers
Eastey SB-2EX Random Side Belt Case Tapers
SKU:SB2-b29091
Efficiently seal diverse case sizes with Eastey SB-2EX Tapers, reliable industrial strength case taping solutions.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Eastey SB-2EX Random Side Belt Case Tapers
$5,999.99
Quantity: 1
Claim Your Seller Account
Eastey SB-2EX Random Side Belt Case Tapers
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

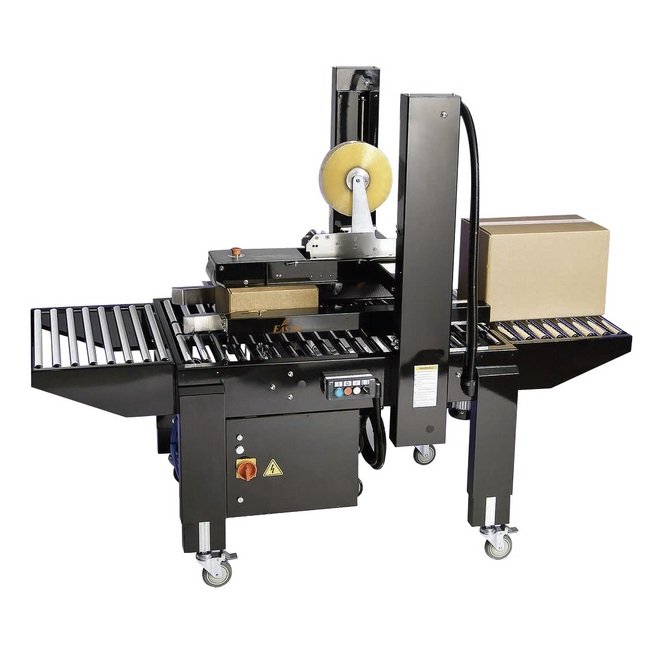

The Eastey SB-2EX Random Side Belt Case Tapers offer unparalleled versatility and efficiency for sealing a variety of case sizes without manual adjustments. With industrial-strength construction, automatic side rail and tape head adjustments, and dual drive motors, this CE-certified machine ensures reliable high-quality case sealing. Easy to operate and maintain, it accommodates wide box sizes and features a memory function for reduced wear. Ideal for institutional and industrial settings seeking rugged design and proven reliability.
Product Specifications
Additional Information Additional Information

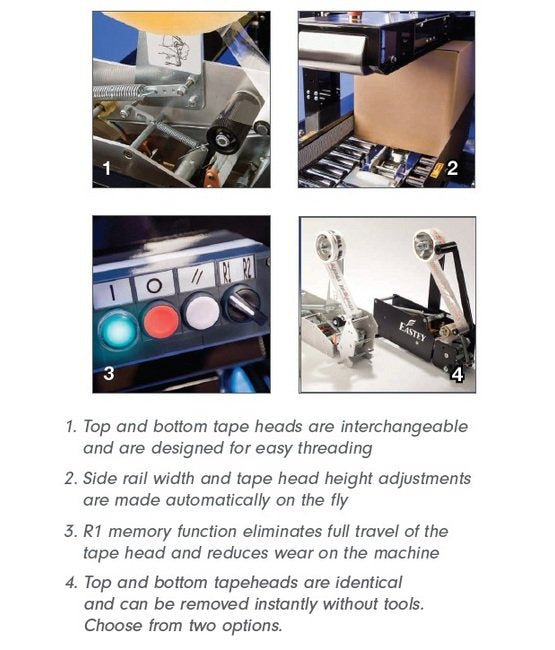

Top and bottom tape heads are interchangeable and are designed for easy threadingSide rail width and tape head height adjustments are made automatically on the flyR1 memory function eliminates full travel of the tape head and reduces wear on the machineTop and bottom tape heads are identical and can be removed instantly without tools. Choose from two options.
Case Taping Made Easy Case Taping Made Easy
SB-2EX Random is designed and built with the customer in mind. Top and bottom tape heads are interchangeable and are designed for easy tape threading. These machines accept 2" wide pressure-sensitive tape as a standard, or can be field convertible to 3" tape heads for wider case taping applications. Operators can learn to use Eastey®'s SB-2EX Random case taping machine in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Box depth memory functionPlug-in and go operationAccommodates wide box sizesIndustrial strength side beltsInterchangeable top and bottom tape cartridgesAdjustable leg extensionsCasters for transportation within plantEmergency stop buttonReset buttonPowder coated 12 gauge steelLow maintenance
Industrial Strength Operation Industrial Strength Operation
Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX Random a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX Random is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rolls, can be converted in the fieldSafety Enclosure - Full plexiglass enclosure walls for operator safetyFront and Rear Packing Table - Roller tables bolt before or after taping system to allow for case movement
Production Meets Versatility Production Meets Versatility
SB-2EX Random utilizes easy to load top and bottom tape cartridges and will seal boxes as narrow as 4.5" wide and as low as 4.5" tall. Side rail and tape head height adjustments are made automatically on the fly as soon as the case is presented to the automatic sensors. In addition, the SB-2EX Random comes equipped with a memory function that adjusts to the maximum box depth. This eliminates full travel of the tape head and reduces wear on the machine.
Technical Specs Adjustable Conveyor Height
21.2 to 34.6 in
Technical Specs Agency Approvals
European Conformity (CE) Certification
Technical Specs Air Requirements
80 psi
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Drive Motor
Two (2) drive motors
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
Technical Specs Maximum Box Depth
23.0 in
Technical Specs Maximum Box Length
Infinite
Technical Specs Maximum Box Width
23.0 in
Technical Specs Minimum Box Depth
4.5 in
Technical Specs Minimum Box Length
5 in
Technical Specs Minimum Box Width
4.5 in
Technical Specs Sealer Type
Random side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
15 to 20 cases per min., depending on box size and operator efficiency
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
Wide Standard Case Range Wide Standard Case Range
The SB-2EX Random's side belts are great for heavy weight, narrow, or small boxes. It is ideal for void-fill random cases where the packaged product does not support the box. SB-2EX Random is designed to handle boxes that most other case tapers can't.
