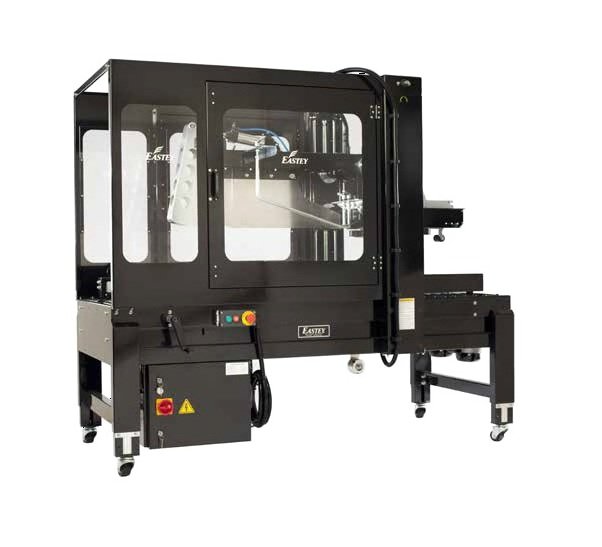

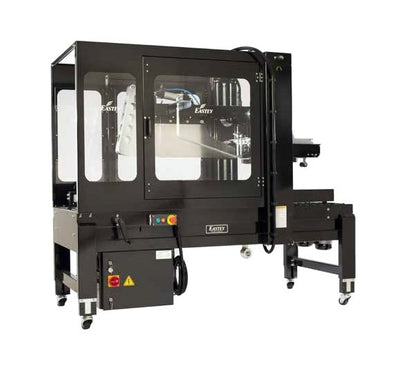

The Eastey SB-2EX Semi-Automatic Uniform Case Taper is a reliable solution for efficiently sealing cartons in industrial settings. With a sturdy 12 gauge steel construction and adjustable plow system, this machine offers fast and precise sealing of cartons ranging from 5" to 24" in length. Its dual drive motors, CE approval, and compatibility with 2" or optional 3" tape heads ensure durability and versatility. Ideal for institutions seeking a cost-effective and high-performance case taper.
Product Specifications
Additional Information Additional Information

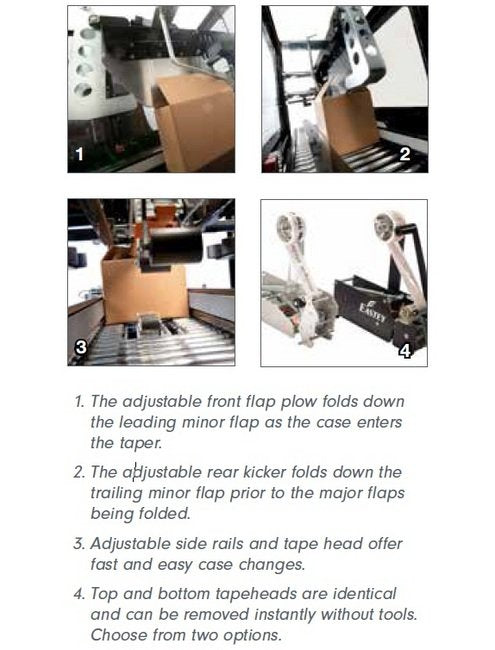

The adjustable front flap plow folds down the leading minor flap as the case enters the taper.The adjustable rear kicker folds down the trailing minor flap prior to the major flaps being folded.Adjustable side rails and tape head offer fast and easy case changes.Top and bottom tape heads are identical and can be removed instantly without tools. Choose from two options.
Affordable Functionality Affordable Functionality
Top and bottom tape heads lift out for easy threading. The SB-2EX Semi accepts 2" wide pressure-sensitive tape as a standard, or can be ordered with 3" tape heads. The use of Eastey®'s SB-2EX Semi case taping machine can be learned quickly, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Efficient Versatility Efficient Versatility
SB-2EX Semi offers fast and easy case changes and flexibility for boxes 5" to 24" in length. The adjustable hand cranks can be moved to either side of the machine and allow for quick carton changeover. This feature allows you to locate either side against a wall, while being able to maintain control of the adjustments from the opposite side. SB-2EX Semi utilizes Eastey®'s EX Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4.5" wide and as low as 4.5" tall.
Features Features
Utilizes Eastey®'s EX tape headPlug-In and go operationPowder coated 12 gauge steelAdjustable side guidesIndustrial strength side beltsAdjustable leg extensionsFast and easy box size changesLow maintenanceAccommodates wide case rangeCasters for transportation within plant
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rollsFront Roller Table - Roller table bolts before taping system to allow for case movementRear Roller Table - Roller table bolts after taping system to allow for case movement
Quality Construction Quality Construction
SB-2EX Semi features CE approved dual drive motors and aggressive industrial strength side drive belts. Each case taping machine is made from 12 gauge steel that withstands even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use.
Semi Automatic Uniform Semi Automatic Uniform
The SB-2EX Semi will accept cartons from a powered conveyor and will automatically close the top carton flaps. A rugged stainless steel plow folds down the front panel, while a rear kicker folds down the trailing minor flap prior to the major flaps being folded. The SB-2EX Semi automatically meters cartons with a photo eyed controlled gating system. Top squeezing rollers help keep the major flaps together while keeping the carton square prior to tape application.
Technical Specs Adjustable Conveyor Height
27 to 34.6 in
Technical Specs Agency Approvals
European Conformity (CE) Certification
Technical Specs Air Requirements
85 psi
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
Technical Specs Maximum Box Depth
19.5 in
Technical Specs Maximum Box Length
24 in
Technical Specs Maximum Box Width
19.5 in
Technical Specs Minimum Box Depth
4.5 in
Technical Specs Minimum Box Length
5 in
Technical Specs Minimum Box Width
4.5 in
Technical Specs Sealer Type
Semi-automatic uniform side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
20 cases/per minute, depending on box size and operator efficiency
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
