Eastey SB-2HD Industrial Side Belt Case Taper

Eastey SB-2HD Industrial Side Belt Case Taper

SB2-25b94e

Eastey SB-2HD: Industrial strength, reliable performance, and easy operation for efficient case sealing.

$8,999.99
$8,999.99
Sale

Initiate Order

Eastey SB-2HD Industrial Side Belt Case Taper

Eastey SB-2HD Industrial Side Belt Case Taper

$8,999.99

Quantity: 1

Claim Your Seller Account

Eastey SB-2HD Industrial Side Belt Case Taper

Eastey SB-2HD Industrial Side Belt Case Taper

$8,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

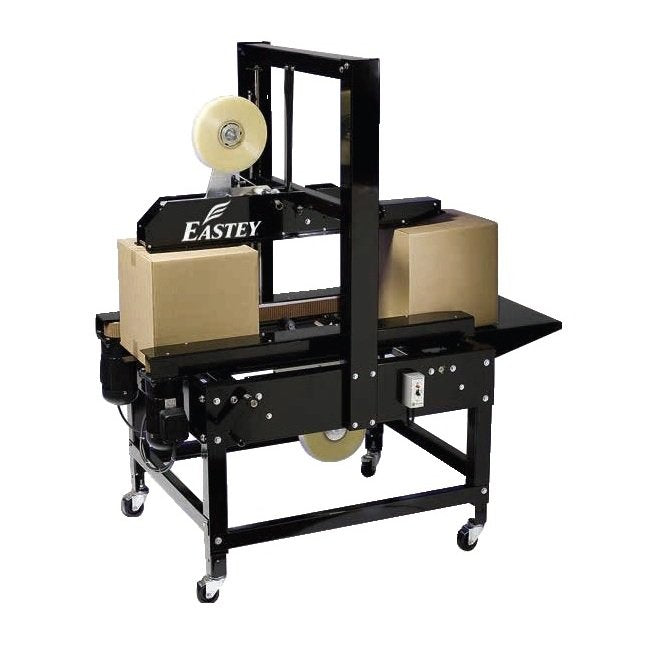

The Eastey SB-2HD Industrial Side Belt Case Taper is a powerhouse with dual drive motors and aggressive belts, crafted from durable 12 gauge steel. Designed for maximum uptime, this case taper delivers fast, efficient sealing with features like adjustable conveyor height, versatile box handling, and easy tape cartridge maintenance. Offering rugged reliability, simple operation, and optional accessories for customization, the SB-2HD is the right solution for industrial sealing needs.

Product Specifications

Additional Information Additional Information

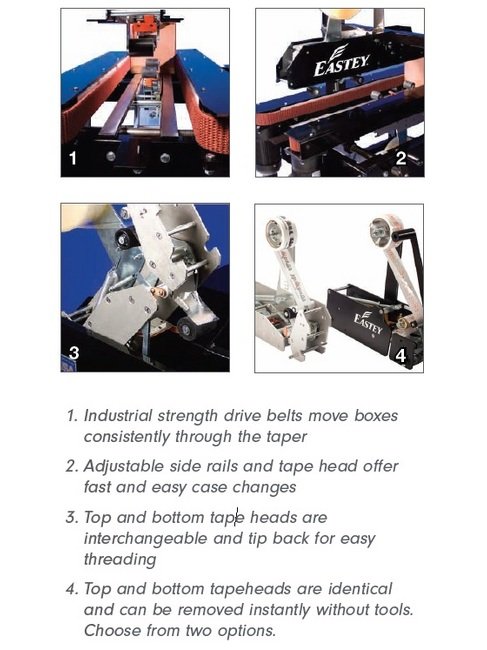

Industrial strength drive belts move boxes consistently through the taperAdjustable side rails and tape head offer fast and easy case changesTop and bottom tape heads are interchangeable and tip back for easy threadingTop and bottom tape heads are identical and can be removed instantly without tools. Choose from two options.
Case Taping Made Easy Case Taping Made Easy
SB-2HD is designed and built with the customer in mind. Top and bottom tape heads are interchangeable and tip back for easy threading. These machines accept 2" wide pressure-sensitive tape as a standard, or they can be ordered to handle 3" tape. The use of Eastey®'s SB-2HD case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Plug-in and go operationPowder coated 12 gauge steelInterchangeable top and bottom tape cartridgesIndustrial strength side beltsAdjustable leg extensionsFast and easy box size changesNo air requiredLow maintenanceAccommodates wide box size change
Industrial Strength Operation Industrial Strength Operation
Dual drive motors and aggressive industrial strength drive belts make SB-2HD a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder-coated exterior protects the machine from abusive conditions and guarantees years of use.
Optional Accessories Optional Accessories
Front Packing Table - Solid table bolts before taping system to allow for case packingCasters - Rugged wheels for transportation within plantTop Squeezers - Designed to stabilize the box and push the top flaps together for easier tapingStainless Finish - Complete stainless finish to meet specific application requirements
Production Meets Versatility Production Meets Versatility
SB-2HD offers fast and easy case changes with adjustable side rails and flexibility for boxes 4.5" long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB-2HD utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4" wide and as low as 2" tall, where most standard case tapers are only able to tape at a depth of 3" or greater. The SB-2HD can be supplied to operate from left to right at no additional cost, and does not require air to run.

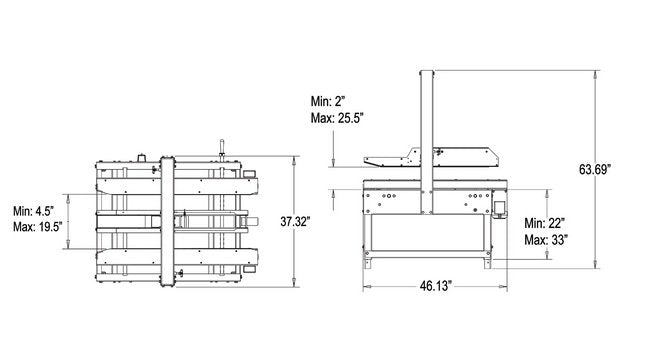

Technical Specs Adjustable Conveyor Height
22.5 to 30.5 in
Technical Specs Air Requirements
None
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
72 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
5 A
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
Technical Specs Maximum Box Depth
25.5 in
Technical Specs Maximum Box Length
Infinite
Technical Specs Maximum Box Width
20 in
Technical Specs Minimum Box Depth
2 in
Technical Specs Minimum Box Length
4.5 in
Technical Specs Minimum Box Width
4 in
Technical Specs Sealer Type
Side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
30 cases/per minute, depending on box size and operator efficiency
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
Wide Standard Case Range Wide Standard Case Range
The SB-2HD's side belts are great for light or heavyweight, narrow or small boxes. The system is ideal for void fill cases where the packaged product does not support the box. SB-2HD is designed to handle boxes that most other case tapers can't.
