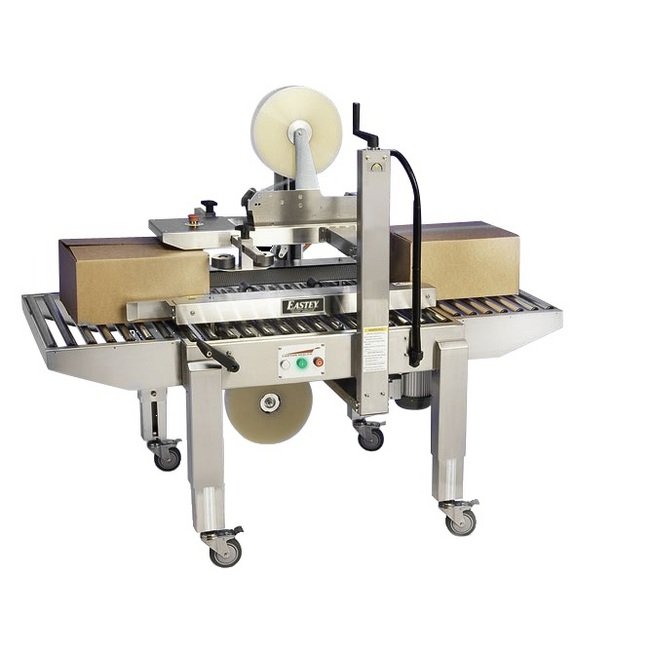

The Eastey Stainless Steel Side Belt Case Taper (SB-2EX-SS) is a versatile and reliable solution for sealing a wide range of box sizes with efficiency and precision. Built with industrial-strength 12 gauge steel, dual 1/4 HP drive motors, and adjustable conveyor height, this case taper ensures maximum uptime and durability. With a belt speed of 75 ft/min and the ability to use 2" wide pressure-sensitive tape, the SB-2EX-SS offers fast and easy box size changes and top-quality case sealing. Whether for light or heavy weight boxes, this CE certified machine delivers consistent and high-quality results, making it the ideal choice for industrial packaging operations.
Product Specifications
Additional Information Additional Information

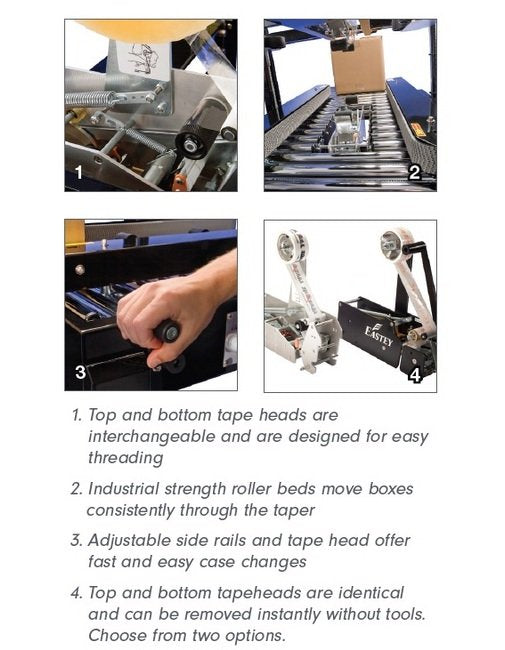

Top and bottom tape heads are interchangeable and are designed for easy threadingIndustrial strength roller beds move boxes consistently through the taperAdjustable side rails and tape head offer fast and easy case changesTop and bottom tape heads are identical and can be removed instantly without tools. Choose from two options.
Case Taping Made Easy Case Taping Made Easy
SB-2EX-SS is designed and built with the customer in mind. Top and bottom tape cartridges are interchangeable and designed for easy tape threading. These machines accept 2" wide pressure-sensitive tape as a standard, or can be converted in the field with 3" tape heads for wider case taping applications. Operators can learn to use Eastey®'s SB-2EX-SS case taping machine in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Features Features
Plug-in and go operationFast and easy box size changesIndustrial strength side beltsInterchangeable top and bottom tape cartridgesEmergency stop buttonAdjustable leg extensionsCasters for transportation within plantFront and rear pack tables to allow for case packingTop squeezers push top flaps together for accurate case sealing12 gauge stainless steelLow maintenance, no air required
Industrial Strength Operation Industrial Strength Operation
Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX-SS a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge stainless steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX-SS is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rolls
Production Meets Versatility Production Meets Versatility
SB-2EX-SS offers fast and easy case changes with adjustable side rails and flexibility for boxes 5" long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks which can be attached to either side of the machine. SB-2EX-SS utilizes easy to load top and bottom tape cartridges and will seal boxes as narrow as 4.5" wide and as low as 4.5" tall.
Technical Specs Adjustable Conveyor Height
18.1 to 32.3 in
Technical Specs Agency Approvals
European Conformity (CE) Certification
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Drive Motor
Two (2) 1/4 HP drive motors
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel
Technical Specs Maximum Box Depth
19.5 in
Technical Specs Maximum Box Length
Infinite
Technical Specs Maximum Box Width
19.5 in
Technical Specs Minimum Box Depth
4.5 in
Technical Specs Minimum Box Length
5 in
Technical Specs Minimum Box Width
4.5 in
Technical Specs Sealer Type
Side belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
30 cases per min., depending on box size and operator efficiency
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
