Eastey TB-2 Top and Bottom Case Taper
Eastey TB-2 Top and Bottom Case Taper
SKU:TB2-445242
Eastey TB-2: Reliable top and bottom case taper for industrial sealing needs.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Eastey TB-2 Top and Bottom Case Taper
$5,699.99
Quantity: 1
Claim Your Seller Account
Eastey TB-2 Top and Bottom Case Taper
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

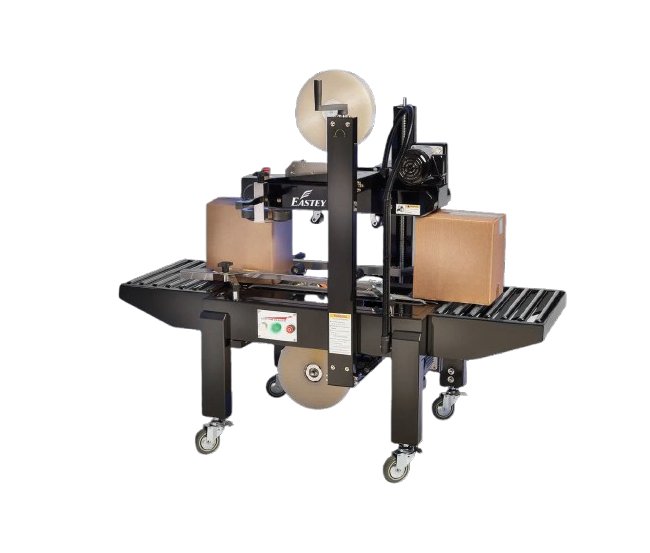

The Eastey TB-2 Top and Bottom Case Taper is a robust solution designed to meet the case taping needs of industrial operations. With top and bottom drives, this machine offers stability and efficiency for sealing tall, narrow, or over-filled cases up to 85 lbs. Featuring a dual mast for tape head stability, adjustable side guides, and top compression rollers, the TB-2 ensures consistent seals. Its rugged 12-gauge steel construction, powder coating, and CE approval guarantee durability in demanding environments. Increase productivity and ROI with this reliable and user-friendly case taping system from Eastey.
Product Specifications
Box Specifications Maximum Box Depth
19.5 in
Box Specifications Maximum Box Length
Infinite
Box Specifications Maximum Box Width
19.5 in
Box Specifications Minimum Box Depth
4.5 in
Box Specifications Minimum Box Length
5 in
Box Specifications Minimum Box Width
6.0 in
Features Features
Utilizes Eastey®'s Easy-Taper tapeheadDual mast for tape head stabilityTop compression rollersFront and rear roller pack tablesPlug-in and go operationPowder coated 12 gauge steelAdjustable side guidesIndustrial strength top and bottom beltsAdjustable leg extensionsFast and easy box size changesLow maintenanceCasters for transportation within plant
Flexibility For Your Operation Flexibility For Your Operation
TB-2 offers fast and easy case changes and flexibility for boxes 5â in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. TB-2 utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 6.0â wide and as low as 4.5" tall.
Increase Your Roi Increase Your Roi
Top and bottom tape heads lift out for easy threading and accept 2" wide pressure-sensitive tape as a standard, or can be ordered with 3" tape heads. The use of Eastey娉s TB-2 case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.

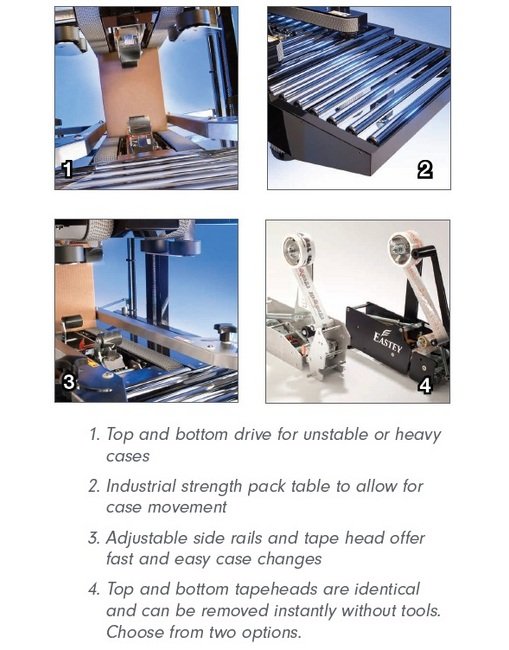

Maximum Stability Maximum Stability
Four drive belts work in unison to move your cases consistently through for a strong and consistent seal. TB-2 utilizes a dual mast with twin lead screws for greater tape head stability and adjustable side guides to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled cases. The system is designed to keep maintenance to a minimum and provide a fast and efficient alternative to hand taping.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rolls
Rugged Workhorse Rugged Workhorse
CE approved dual drive motors and aggressive industrial strength top and bottom drive belts make TB-2 a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that withstands even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use.
Technical Specs Adjustable Conveyor Height
24.3 to 32.3 in
Technical Specs Agency Approvals
European Conformity (CE)
Technical Specs Alternating Current Ac Input Voltage
110 V
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
Technical Specs Note For Tape Speed
Depending on box size and operator efficiency
Technical Specs Optional Tape Width
3 in
Technical Specs Pressure Sensitive Tape Width
2 in
Technical Specs Sealer Type
Uniform top and bottom belt, top and bottom case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, designed for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Roll Diameter
0 to 15 in
Technical Specs Tape Speed
30 cases/min
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
