Efficiently seal various films with the Eastey Value Series 32 Inch Automatic L-Sealer. User-friendly design, consistent sealing, and precise film shrinkage.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Eastey Value Series 32 Inch Automatic L-Sealer
$8,999.99
Quantity: 1
Claim Your Seller Account
Eastey Value Series 32 Inch Automatic L-Sealer
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

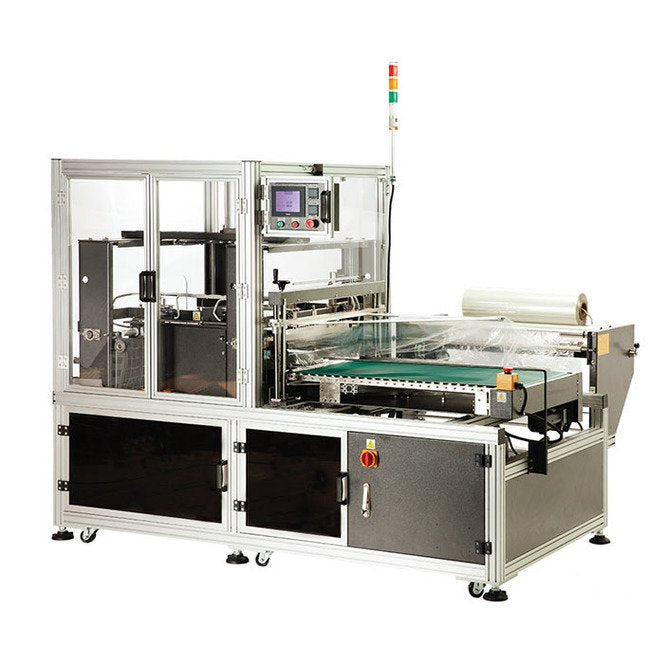

The Eastey Value Series 32 Inch Automatic L-Sealer is a dependable solution for entry-level and intermediate packaging applications. Designed for efficiency and durability, this L-sealer seals a variety of films including polyolefin, polyethylene, and PVC. With its all-welded steel frame, motorized seal height adjustment, and pneumatic air cylinder for automatic sealing, it ensures consistent and clean seals. The user-friendly HMI controller allows for easy operation and adjustments, while features like the pin perforator and roller exit table enhance air evacuation and shrinkage control. Ideal for organizations seeking reliability and cost-effectiveness in their packaging processes.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY, EFFICIENT DESIGNDesigned specifically for entry-level or intermediate applications that require simple operation, small footprint, or a limited budget, Eastey's Value-Series Automatic L-Sealers will handle the day to day abuse required for automatic sealing.
Conveyor Height Maximum Conveyor Height
36 in | 91 cm
Conveyor Height Minimum Conveyor Height
33.5 in | 85 cm
Key Features Key Features

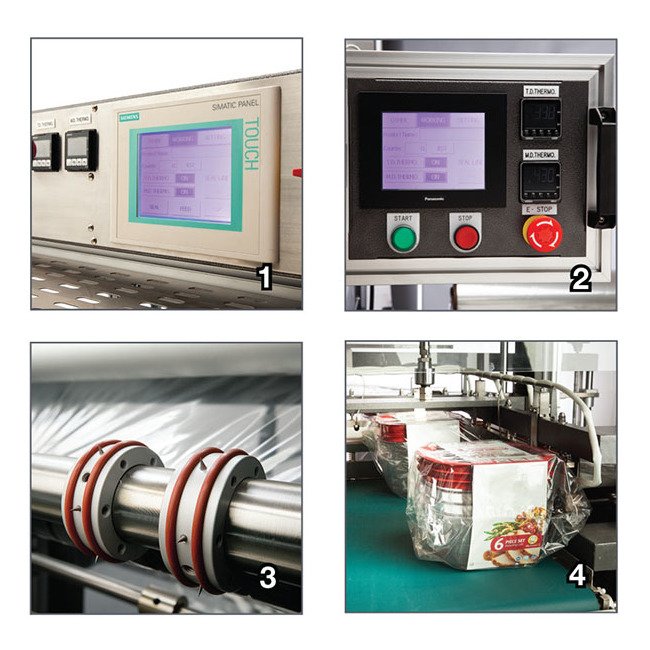

VSA2530 HMIUser interface features simple menus for easy operation and adjustments required for a variety of applicationsPin PerforatorAdjustable pin perforator provides air evacuation in the film or clean and tight film shrinkageRoller Exit TableProvides a smooth transition from the seal area to the shrink tunnel

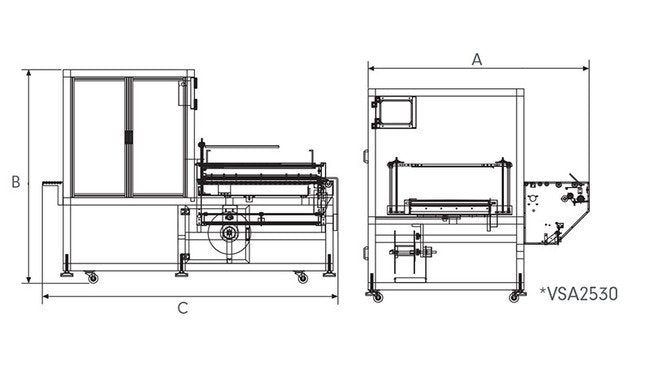

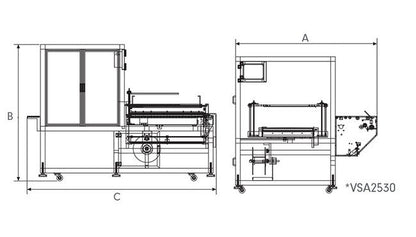

Machine Dimensions Machine Height B
69 in | 175 cm
Machine Dimensions Machine Length C
95 in | 242 cm
Machine Dimensions Machine Width A
71 in | 181 cm
Specifications Film Width
32 in | 81 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 32 in
Specifications Pressure
80 psi
Specifications Seal Length
30 in
Specifications Seal Width
25 in
Specifications Shipping Weight
1200 lb | 544 kg
Specifications Weight
1100 lb | 498 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 12 gauge steelNormal speed infeed and outfeed conveyorsHigh speed with product indexingMotorized seal height adjustment for various product sizesSeal head equipped with pneumatic air cylinder for automatic sealingHot knife seal bar for consistent and clean sealConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timeHMI controller with simple menus for easy operationFilm tracking wheels keep film in placeMultiple pin perforator provides precise air evacuationHeavy duty casters for transportation within plantLevelling legs provide sturdy base once in placeVSA1721 features a 17"W x 21"L seal areaScrap unwind automatically wraps up the scrap film left from the sealerEasy to use design requires minimal training and maintenanceAvailable in 220v
Standard Power Current
15 A
Standard Power Phase
3
Standard Power Voltage
220 V
