EASTEY Value Series L-Sealing Combo Unit
EASTEY Value Series L-Sealing Combo Unit
SKU:PAC-1f6d54
Efficient & durable EASTEY L-Sealing Combo Unit for reliable product sealing.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
EASTEY Value Series L-Sealing Combo Unit
$7,899.99
Quantity: 1
Claim Your Seller Account
EASTEY Value Series L-Sealing Combo Unit
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

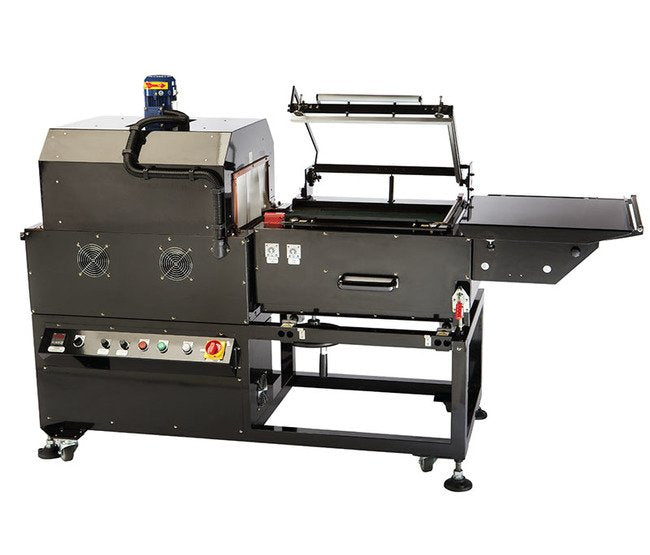

The EASTEY Value Series Combo Unit is a reliable and rugged semi-automatic L-sealing system designed for efficiency and durability. Combining an EASTEY L-sealer and shrink tunnel on a sturdy frame, this unit ensures quick setup, perfect alignment, and consistent product sealing. Built on a 12-gauge steel frame, it features a 16" x 20" sealing size, a chamber size of 16" x 7" x 26", and a wide range of film compatibility including polyethylene, polyolefin, and PVC. With features like a gas shock head return, adjustable pin perforator, and dual locking magnet clamps, this system offers the durability and quality expected from EASTEY products.
Product Specifications
Additional Information Additional Information
BUILT RIGHT...PRICED RIGHTProven reliable over and over again, these intermediate level EASTEY L-Sealers provide you with all the quality features found in much higher priced machines. Depending on your application, users can choose between a hot knife or hot band seal system to provide a positive seal on a wide variety of films including polyethylene, polyolefin, and PVC.RUGGED DESIGNEASTEY Value Series Combo Unit are expertly welded on 12 gauge steel frames and designed to handle the day to day abuse of manual sealing in most shrink wrap applications. Rugged seal arms and magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Chamber Dimensions Chamber Height
7 in | 18 cm
Chamber Dimensions Chamber Length
26 in | 66 cm
Chamber Dimensions Chamber Width
16 in | 41 cm
Key Features Key Features

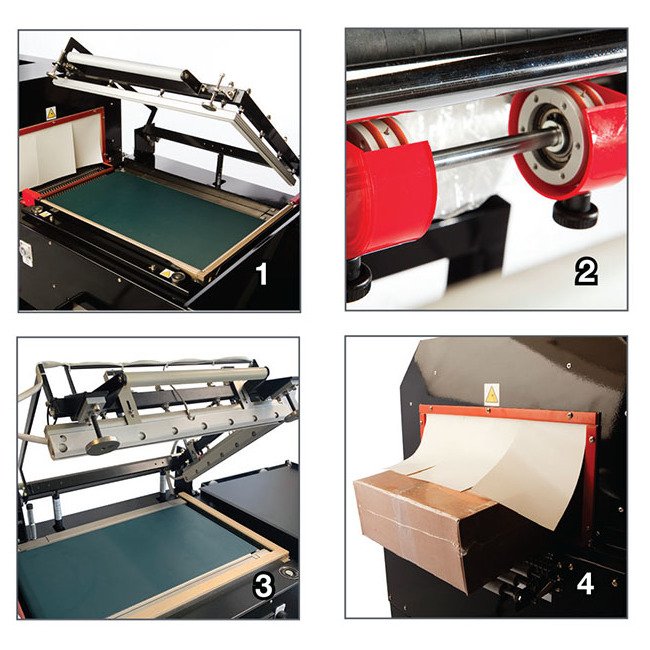

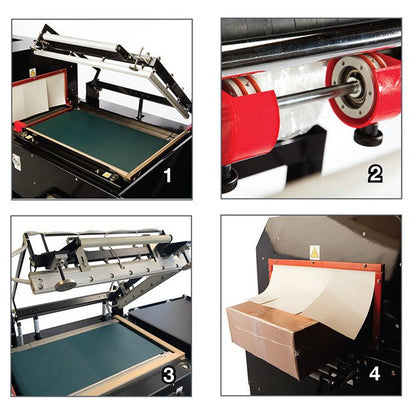

Takeaway ConveyorSeal head can be raised or lowered to center the seal on your productPin PerforatorAdjustable pin perforator provides air evacuation in film which allows for proper film shrinkageSeal Head OptionsSeal head system available as hot knife or hot band depending on your applicationInside of TunnelConsistent air flow provides positive shrinking of polyolefin or PVC shrink film

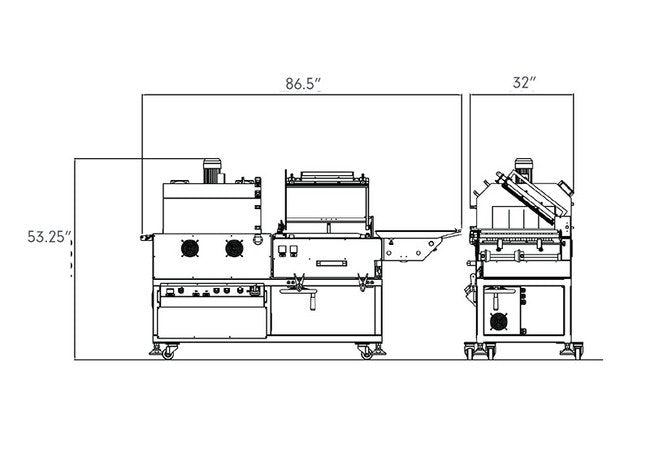

Machine Dimensions Machine Height
53.25 in | 134 cm
Machine Dimensions Machine Length
86.5 in | 218 cm
Machine Dimensions Machine Width
32 in | 81 cm
Specifications Alternate Item Number
VS1620TK
Specifications Conveyor Length
24 in | 61 cm
Specifications Conveyor Width
13.5 in | 34 cm
Specifications Maximum Film Width
0 to 18 in
Specifications Sealing Size
16 x 20 in
Specifications Shipping Weight
750 lb | 340 kg
Specifications Weight
650 lb | 295 kg
Standard Features Standard Features
Seal head system available as a hot knife or hot band depending on your applicationDesigned to seal polyethylene, polyolefin or PVC shrink filmAll-welded main frame from 12 gauge steelSeal head equipped with gas shock head returnDual locking magnet clamps apply consistent pressure across seal barAutomatic cycle timing with adjustable dwell timeSolid state temperature control adjustable for a variety of filmWide product tray provides large work areaSeal head can be raised or lowered to center-seal productFilm rack positioned beneath product tray for simple film loadingAdjustable pin perforator provides air evacuationPositive shrinking of all products assured with consistent air flow16" wide x 7" tall x 26" long chamberVariable speed tunnel conveyor and variable air flow for a variety of shrink applicationsRugged stainless steel mesh belt conveyor or live roller conveyor on tunnelHeavy duty casters for transportation within plantEasy to use design requires minimal training and maintenance
Standard Power Current
30 A
Standard Power Phase
1
Standard Power Voltage
220 V
