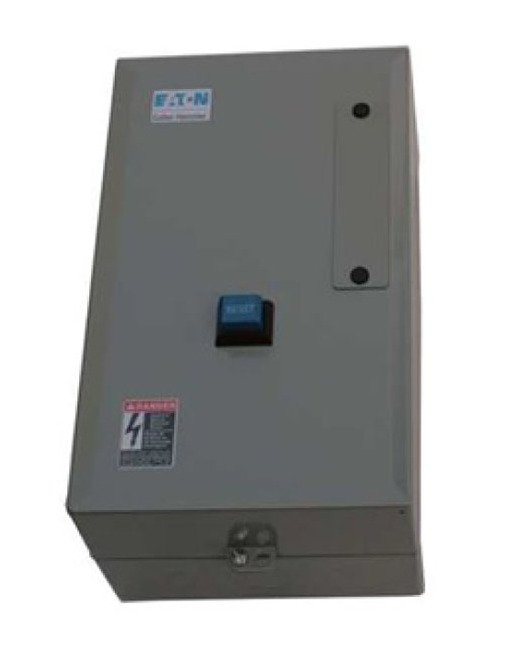

Eaton 20/25 HP NEMA 1 Magnetic Motor Starter - UL Listed & RoHS Compliant
Eaton 20/25 HP NEMA 1 Magnetic Motor Starter - UL Listed & RoHS Compliant
SKU:MAG-c02430
Eaton 20/25 HP Magnetic Motor Starter: UL Listed, RoHS Compliant, Trip-Free Mechanism, Shrouded Terminals
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Eaton 20/25 HP NEMA 1 Magnetic Motor Starter - UL Listed & RoHS Compliant
$229.99
Quantity: 1
Claim Your Seller Account
Eaton 20/25 HP NEMA 1 Magnetic Motor Starter - UL Listed & RoHS Compliant
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton 20 / 25 Horsepower Maximum Power Magnetic Motor Starter is a reliable and efficient solution for starting motors in industrial settings. With Bi-Metallic Ambient Compensated Operation and a Trip Free Mechanism, this starter ensures safe and smooth motor activation without the need for heaters. Featuring shrouded or finger-proof terminals to reduce the risk of electrical shock, this starter is designed with safety in mind. UL Listed and RoHS compliant, it meets the highest industry standards. Compatible with 460V systems, NEMA 1 enclosure, and designed for three-phase operations, this starter is a perfect blend of performance and safety.
Product Specifications
Accessories 0
Model Number : Al Models Part No. : C400GK1-GD Description : Start/Stop Switch Includes Mounting Flange Model Number : Al Models Part No. : C400GK3-GD Description : H-O-A Selector Switch w/Mounting Flange Model Number : Al Models Part No. : C400GK6-GD Description : Test/Off/Auto Push Button Spring Return from Test Model Number : 1NO (A27, B27) Part No. : C320KG1 Description : Auxiliary Contact (Side Mount) Model Number : 1NO, 1 NC (A27, B27) Part No. : C320KG3 Description : Auxiliary Contact (Side Mount) Model Number : 1NO, 1NC (ECX) Part No. : XTCEXSBN11 Description : Auxiliary Contact (Side Mount)
Additional Information 0
Non Reversing IEC ContactorsNEMA 1 General Purpose Enclosure Standard
Specifications Brand
Eaton
Specifications Enclosure
NEMA 1
Specifications Maximum Power
20 hp | 25 hp
Specifications Phase
3
Specifications Size
2 in
Specifications Voltage
460 V
