Eaton-Airflex 109DC Clutches and Brakes
Eaton-Airflex 109DC Clutches and Brakes
SKU:CLU-5ee071
Compact and powerful Eaton-Airflex 109DC Clutches & Brakes for power presses, tension brakes, and emergency stops. Reliable, low maintenance, high torque efficiency.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Eaton-Airflex 109DC Clutches and Brakes
$1,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 109DC Clutches and Brakes
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 109DC Clutches and Brakes offer exceptional torque efficiency in a compact design, making them ideal for a variety of applications such as power presses, tension brakes, and emergency stop brakes on unwind stands. With a dynamic torque rating of 10500 lb·in (1190 Nm) at 75 psi (5.2 bar), these elements are known for their low inertia friction disc assembly, split friction disc option, and long-wearing PolyPak* seals, ensuring reliability and low maintenance requirements. Designed for high torque applications, these elements meet stringent industry standards for performance and durability.
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

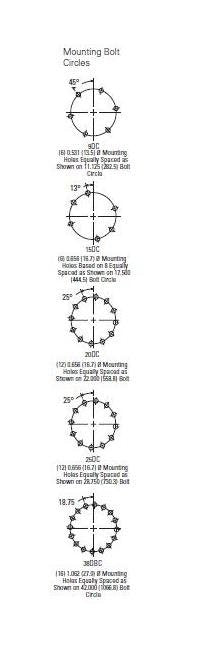

Specifications Bolt Circle
3.50 in | 89 mm

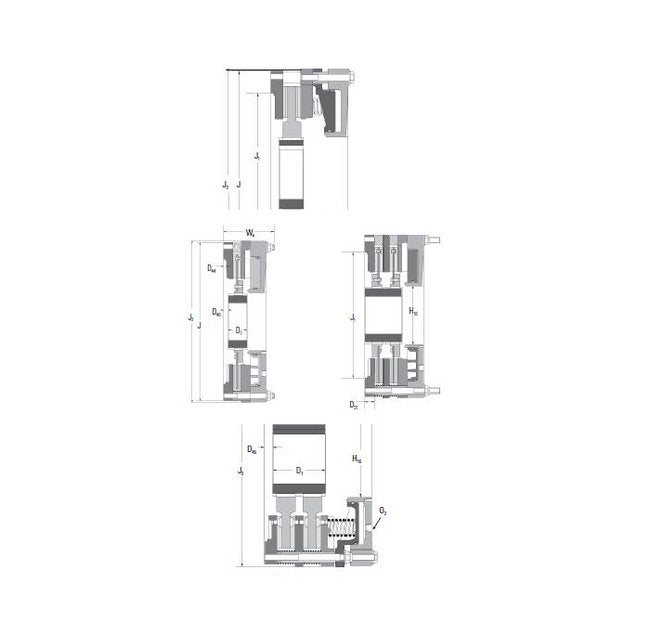

Specifications Dimension D1
1.75 in | 44 mm
Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
0.25 in | 6 mm
Specifications Dimension H16
3.25 in | 83 mm
Specifications Dimension J
12.125 in | 308.0 mm
Specifications Dimension J1
8.375 in | 212.7 mm
Specifications Dimension J2
12.37 in | 314 mm
Specifications Dimension O2
3/8-14 NPT
Specifications Disc And Gear Weight
9 lb | 4 kg
Specifications Disc Gear Inertia
0.5 lb·ft² | 0.02 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
10500 lb·in | 1190 Nm
Specifications Gear Part Number
415313
Specifications Housing Inertia
8 lb·ft² | 0.34 kg·m²
Specifications Housing Weight
60 lb | 27 kg

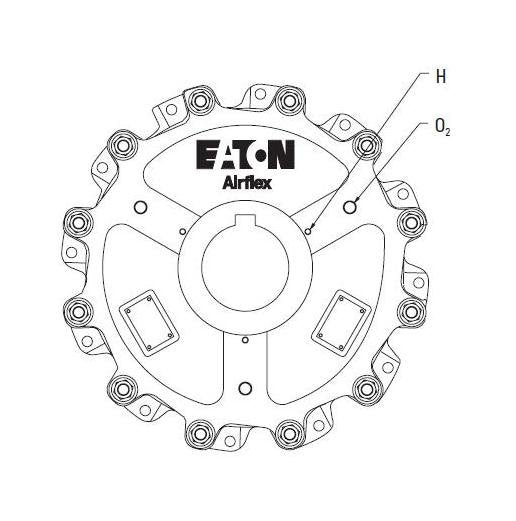

Specifications H Number
3
Specifications H Size
1/4-20NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
2.38 in | 60 mm
Specifications Maximum Speed Of Disc
3000 rpm
Specifications Maximum Speed Of Element
1600 rpm
Specifications Minimum Bore
1.75 in | 44 mm
Specifications Number Of Friction Discs
1
Specifications Size
109DC
Specifications W4
5.63 in | 143 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
