Eaton-Airflex 10CB300 Tapered Bushing Assembly
Eaton-Airflex 10CB300 Tapered Bushing Assembly
SKU:CLU-c06d84
Dependable Eaton-Airflex 10CB300 assembly for industrial clutch or brake service, high torque rating, and air actuation.
Regular price
$1,650.99
Regular price
Sale price
$1,650.99
Unit price
per
Initiate Order
Eaton-Airflex 10CB300 Tapered Bushing Assembly
$1,650.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 10CB300 Tapered Bushing Assembly
$1,650.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 10CB300 Tapered Bushing Assembly is a robust element assembly specifically engineered for reliable clutch or brake performance in demanding industrial environments. With a torque rating of 8150 lb·in at 75 psi, it excels in high-speed applications and ensures efficient power transmission. This assembly boasts dimensions that meet stringent standards, including a shaft diameter range of 1.250 thru 2.000 inches, facilitating versatile applications. Manufactured by Eaton-Airflex, a trusted name in the industry, this assembly is actuated by air, adding to its operational convenience.

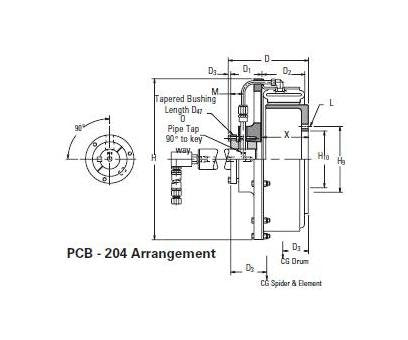

Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
8.22 in | 209 mm
Specifications Dimension D2
3.44 in | 84 mm
Specifications Dimension D24
1.91 in | 49 mm
Specifications Dimension D37
2.4 in | 61 mm
Specifications Dimension D38
1.4 in | 36 mm
Specifications Dimension H
12.47 in | 317 mm
Specifications Dimension H10
4.250 in | 158.8 mm
Specifications Dimension H9
5.250 in | 133.4 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
5.06 in | 129 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
7.94 in | 202 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
1.250 thru 2.000
Specifications Size
10CB300
Specifications Torque Rating At 52 Bar
921 Nm
Specifications Torque Rating At 75 Psi
8150 lb·in
