Eaton-Airflex 125DC Clutch and Brake Element

Eaton-Airflex 125DC Clutch and Brake Element

CLU-2358c1

Compact and high-performing 125DC Clutch/Brake Element for power presses and tension brakes, dynamic torque rating of 160,000 lb·in.

$799.99
$799.99
Sale

Initiate Order

Eaton-Airflex 125DC Clutch and Brake Element

Eaton-Airflex 125DC Clutch and Brake Element

$799.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex 125DC Clutch and Brake Element

Eaton-Airflex 125DC Clutch and Brake Element

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex 125DC Clutch and Brake Element is a versatile component suitable for a variety of applications, including power presses, tension brakes, and emergency stop brakes on unwind stands. With a dynamic torque rating of 160,000 lb·in, this element offers favorable torque-to-size ratio, making it a compact yet high-performing choice. It features low inertia friction disc assembly, optional split friction discs for easy maintenance, and long-wearing self-lubricating PolyPak* seals for durability. Manufactured by Eaton-Airflex, it is actuated by air, meeting the standards of efficiency and reliability required for industrial settings.

Product Specifications

Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)
Specifications Bolt Circle
12.25 in | 311 mm

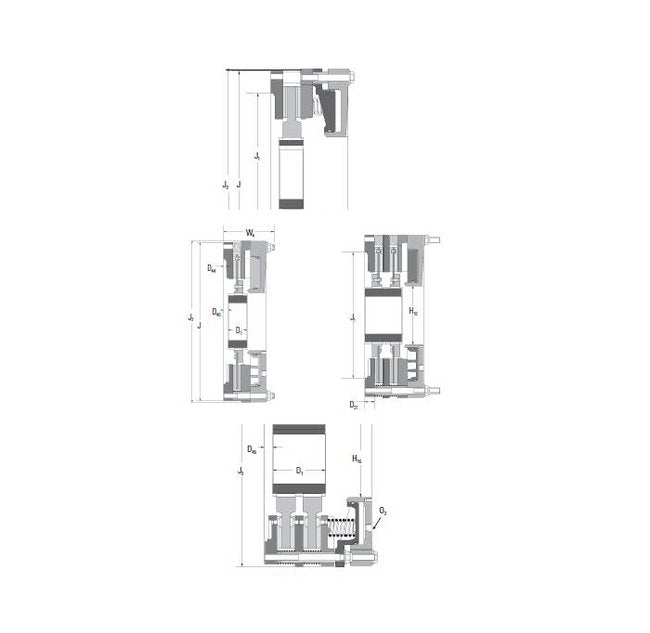

Specifications Dimension D1
3.50 in | 89 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
0.75 in | 19 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.58 in | 777 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
143 lb | 65 kg
Specifications Disc Gear Inertia
47 lb·ft² | 1.98 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
160000 lb·in | 18060 Nm
Specifications Gear Part Number
416073
Specifications Housing Inertia
339 lb·ft² | 14.29 kg·m²
Specifications Housing Weight
557 lb | 253 kg

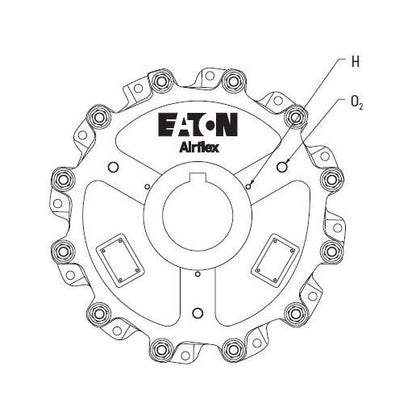

Specifications H Number
4
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.13 in | 181 mm
Specifications Maximum Speed Of Disc
1400 rpm
Specifications Maximum Speed Of Element
650 rpm
Specifications Minimum Bore
4.38 in | 111 mm
Specifications Number Of Friction Discs
1
Specifications Size
125DC
Specifications W4
9.50 in | 241 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
