Eaton-Airflex 12CB350 Integral Drum and Hub Assembly
Eaton-Airflex 12CB350 Integral Drum and Hub Assembly
SKU:CLU-70bb83
Dependable Eaton-Airflex 12CB350 Drum and Hub Assembly for high-performance industrial clutch and brake applications.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Eaton-Airflex 12CB350 Integral Drum and Hub Assembly
$849.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 12CB350 Integral Drum and Hub Assembly
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 12CB350 Integral Drum and Hub Assembly is meticulously engineered for reliable clutch and brake performance in demanding industrial environments. With a robust design optimized for high-speed operations, cyclic use, and power transmission applications, this component ensures precision and durability. Featuring precise specifications such as a Size of 12CB350, Weight of 53 lb, and Inertia of 5.4 lb·ft², this assembly is a superior choice for industries requiring efficient clutch or brake systems.
Product Specifications

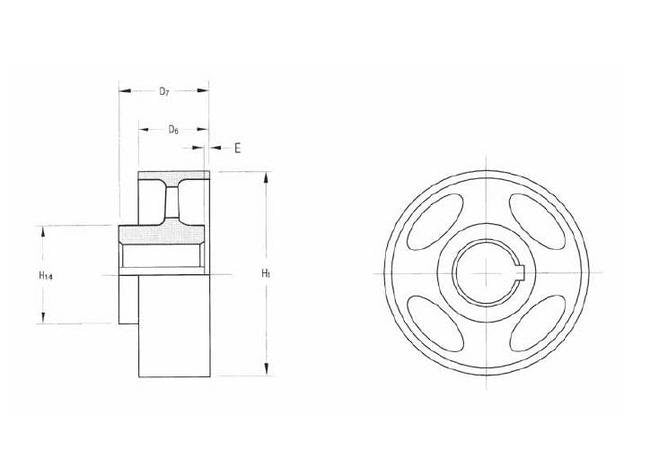

Specifications Dimension D6
4.00 in | 102 mm
Specifications Dimension D7
4.50 in | 114 mm
Specifications Dimension E
1.69 in | 1.69 mm
Specifications Dimension H1
12 in | 305 mm
Specifications Dimension H14
6.13 in | 156 mm
Specifications Inertia
5.4 lb·ft² | 0.23 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
3.31 in | 84 mm
Specifications Minimum Bore
1.50 in | 38 mm
Specifications Size
12CB350
Specifications Weight
53 lb | 24 kg
