Eaton-Airflex 14CB400 Clutch Assembly
Eaton-Airflex 14CB400 Clutch Assembly
SKU:CLU-5ec55f
Dependable Eaton-Airflex 14CB400 Clutch Assembly for high-speed industrial applications. Torque rating of 19700 lb·in at 75 psi.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Eaton-Airflex 14CB400 Clutch Assembly
$1,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 14CB400 Clutch Assembly
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 14CB400 Clutch Assembly, part of the CB Clutches and Brakes product line, is meticulously designed for reliable clutch and brake performance in demanding industrial settings. With a torque rating of 19700 lb·in at 75 psi, this assembly is ideal for high-speed operations and power transmission applications. Its robust construction ensures durability and efficiency, making it a top choice for critical operations.

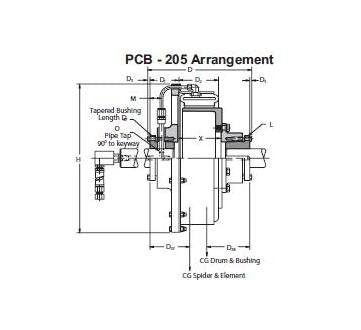

Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
5.72 in | 145 mm
Specifications Dimension D2
5.22 in | 133 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D38
2.0 in | 51 mm
Specifications Dimension H
19.62 in | 498 mm
Specifications Dimension H10
8.250 in | 209.6 mm
Specifications Dimension H9
9.250 in | 235.0 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
2.56 in | 65 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
10.00 in | 254 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
1.750 thru 2.500
Specifications Size
14CB400
Specifications Torque Rating At 52 Bar
2230 Nm
Specifications Torque Rating At 75 Psi
19700 lb·in
