Eaton-Airflex 14CB400 Tapered Bushing Arrangement
Eaton-Airflex 14CB400 Tapered Bushing Arrangement
SKU:CLU-25983e
Dependable Eaton-Airflex 14CB400 Tapered Bushing Arrangement for precise clutch and brake service in industrial settings. Air applied actuation for seamless performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Eaton-Airflex 14CB400 Tapered Bushing Arrangement
$1,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 14CB400 Tapered Bushing Arrangement
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 14CB400 Tapered Bushing Arrangement, part of the CB Clutches and Brakes series, is meticulously engineered to deliver reliable clutch or brake performance in demanding industrial environments. Ideal for high-speed, cyclic operations and power transmission applications, this assembly embodies precision and durability. With dimensions designed for optimal fit and an air applied actuation system, it ensures seamless operation and efficiency.

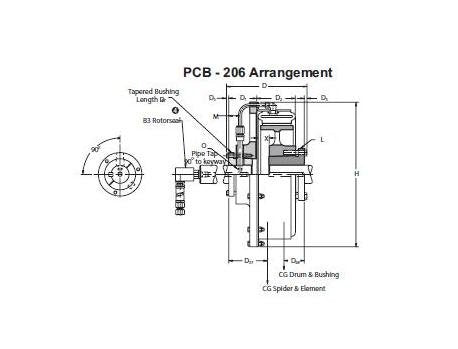

Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
11.38 in | 289 mm
Specifications Dimension D1
109 in
Specifications Dimension D3
10 in
Specifications Dimension D37
3.7 in | 94 mm
Specifications Dimension D38
3.0 in | 76 mm
Specifications Dimension D47
111 in
Specifications Dimension M
57 in
Specifications Dimension X
1.88 in | 48 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
14CB400
Specifications Spider Shaft Diameter
2.563 thru 3.125
