Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement
Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement
SKU:CLU-396df6
Dependable Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement for high-speed industrial applications. Dimensions ensure a precise fit and reliable performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement
$899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 14CB400 Tapered Bushing Clutch/Brake Arrangement, part of the CB Clutches and Brakes series, is expertly crafted for precise industrial applications. Engineered for high-speed operations, cyclic functions, and efficient power transmission tasks, this assembly guarantees dependable clutch or brake performance. With dimensions meticulously designed for a perfect fit, and dependable actuation via air application, it meets the stringent demands of industrial settings.

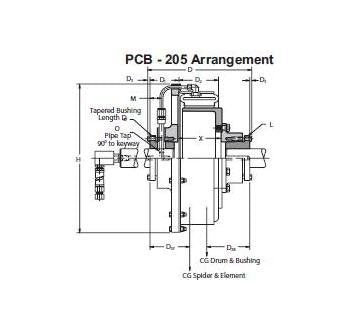

Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
14.88 in | 378 mm
Specifications Dimension D1
4.31 in
Specifications Dimension D3
0.38 in
Specifications Dimension D37
3.7 in | 94 mm
Specifications Dimension D38
4.1 in | 86 mm
Specifications Dimension D47
4.38 in
Specifications Dimension M
2.25 in
Specifications Dimension X
5.88 in | 149 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
14CB400
Specifications Spider Shaft Diameter
2.563 thru 3.125
