The Eaton-Airflex 209DBB disc style brakes are engineered for high-performance applications, offering spring applied, pressure released functionality. These brakes provide equal torque in both rotational directions, ensuring reliability in demanding environments. Featuring low inertia friction disc assembly, optional split friction discs, and durable PolyPak seals, these brakes deliver superior performance and longevity. Ideal for bottling equipment, power shovels, conveyors, shears, and power presses, the Eaton-Airflex 209DBB is designed to meet the rigorous standards of industrial operations.

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

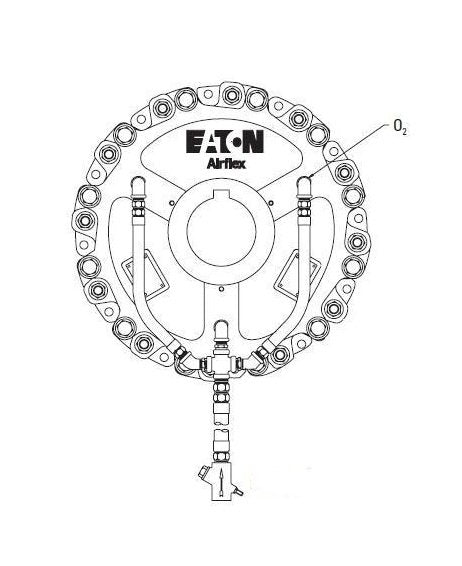

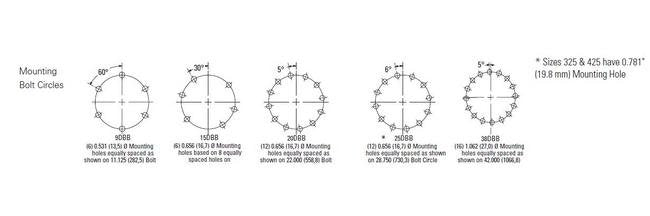

Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release

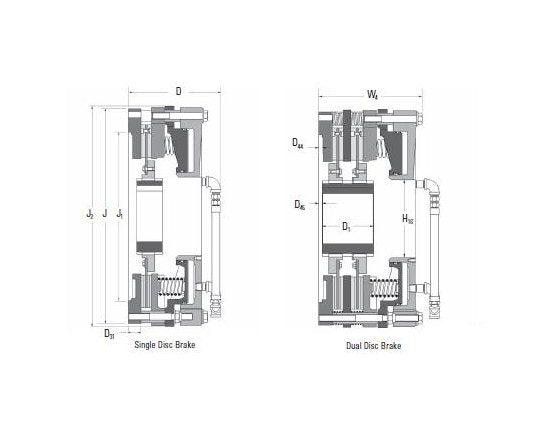

Specifications Dimension D
8.70 in | 221 mm
Specifications Dimension D1
4.00 in | 102 mm
Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.25 in | 6 mm
Specifications Dimension H16
3.12 in | 79 mm
Specifications Dimension J
12.125 in | 308.0 mm
Specifications Dimension J1
8.375 in | 212.7 mm
Specifications Dimension J2
12.37 in | 314 mm
Specifications Dimension O2
3/8-18 NPT
Specifications Dimension W4
7.53 in | 191 mm
Specifications Disc Gear Inertia
1 lb·ft² | 0.04 kg·m²
Specifications Disc Gear Weight
18 lb | 8 kg
Specifications Dynamic Torque Rating
14000 lb·in | 1581 Nm
Specifications Housing Weight
145 lb | 66 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
2.56 in | 65 mm
Specifications Maximum Speed
3000 rpm
Specifications Minimum Bore
1.94 in | 49 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
209DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
