Eaton-Airflex 225DC Clutches and Brakes
Eaton-Airflex 225DC Clutches and Brakes
SKU:CLU-2d300d
Versatile Eaton-Airflex 225DC Clutches and Brakes offering efficient performance and durability. Ideal for various applications.
Regular price
$1,329.99
Regular price
Sale price
$1,329.99
Unit price
per
Initiate Order
Eaton-Airflex 225DC Clutches and Brakes
$1,329.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 225DC Clutches and Brakes
$1,329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 225DC Clutches and Brakes are versatile Type DC elements suitable for both pressure actuated clutches and brakes applications. With a favorable torque to size ratio and low inertia friction disc assembly, these elements offer efficient performance. Featuring long-wearing PolyPak seals and optional split friction discs, they ensure durability and ease of maintenance. Ideal for Power Presses, Tension Brakes, and Emergency Stop Brakes, these elements meet stringent industry standards and are designed for reliable operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

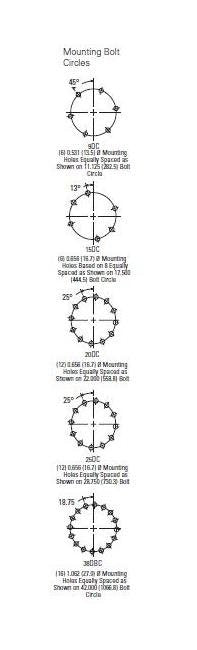

Specifications Bolt Circle
12.25 in | 311 mm

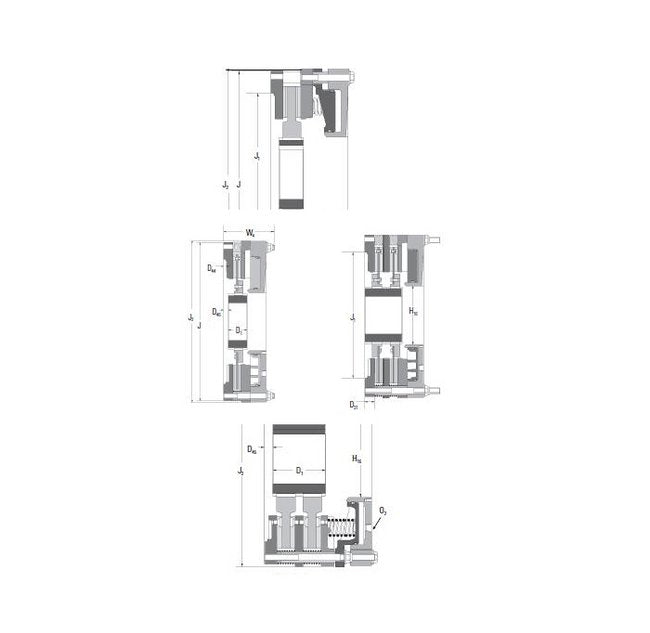

Specifications Dimension D1
7.000 in | 178 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
0.38 in | 10 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.58 in | 777 mm

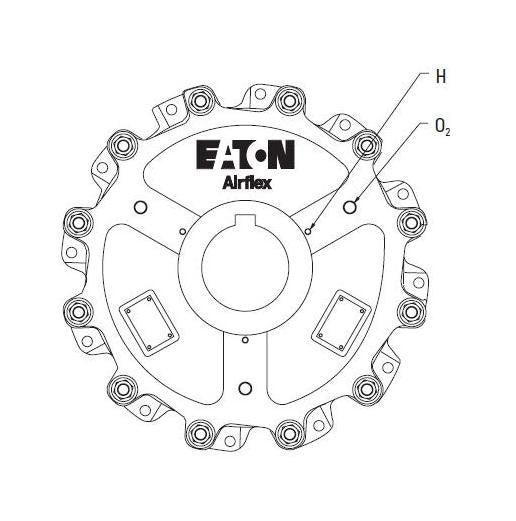

Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
273 lb | 124 kg
Specifications Disc Gear Inertia
93 lb·ft² | 3.92 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
320000 lb·in | 36130 Nm
Specifications Gear Part Number
416074
Specifications Housing Inertia
420 lb·ft² | 17.70 kg·m²
Specifications Housing Weight
689 lb | 312 kg
Specifications H Number
4
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.13 in | 181 mm
Specifications Maximum Speed Of Disc
1400 rpm
Specifications Maximum Speed Of Element
650 rpm
Specifications Minimum Bore
5.50 in | 140 mm
Specifications Number Of Friction Discs
2
Specifications Size
225DC
Specifications W4
12.00 in | 305 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
