Eaton-Airflex 225DP100 Hydraulic Caliper Disc Brakes
Eaton-Airflex 225DP100 Hydraulic Caliper Disc Brakes
SKU:CLU-178d26
Powerful Eaton-Airflex Hydraulic Caliper Disc Brakes for high torque applications with self-adjusting mechanisms and versatile actuation options.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Eaton-Airflex 225DP100 Hydraulic Caliper Disc Brakes
$789.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 225DP100 Hydraulic Caliper Disc Brakes
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 225DP100 Hydraulic Caliper Disc Brakes are expertly designed for large torque, high energy stopping applications. With a symmetrical split construction and self-adjusting retracting mechanisms, these calipers ensure optimal performance and durability. Featuring replaceable friction shoes, ventilated discs for improved cooling, and compatibility with air or hydraulic actuation, these brakes offer versatility and ease of maintenance. Ideal for conveyors, mining equipment, and more, they deliver consistent braking torque and reliability in demanding industrial settings.
Product Specifications
Features 0
Split constructionAccommodates discs of different thicknesses and diameters to meet a wide array of customer requirements.Air or hydraulic operationThe DP and H calipers can be actuated with either air or hydraulic fluid to accommodate existing systems and provide a wide range of torque capabilities.Large piston areaThe large piston area coupled with high actuating pressure gives high braking torque.Ventilated discVentilated brake disc improves cooling capabilities and improves friction material life to minimize downtime and maintenance costs.Ease of maintenanceFriction pads can be easily replaced without disturbing caliper mounting. The friction pads
General Description 0

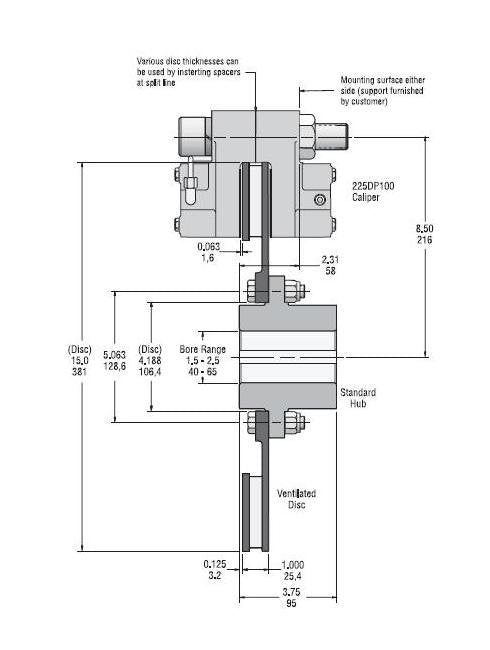

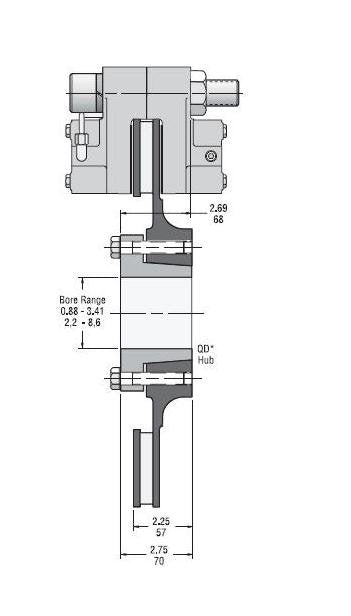

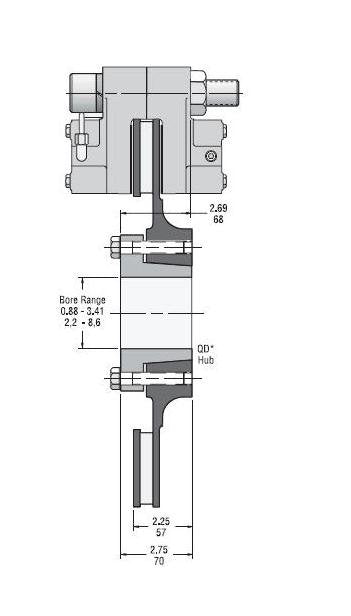

The calipers are of the opposed piston design. This design permits fixed mounting of the caliper and the brake disc. Symmetrical split construction of the piston housings permits center reaction mounting and the ability to accommodate brake discs of different thicknesses. Friction shoes attach to the caliper actuating pistons are replaceable without disturbing the caliper mounting. Pressurizing the piston cylinders causes the piston mounted friction shoes to clamp the disc, developing the braking torque.Caliper model 225DP100 is designed with self adjusting retracting mechanisms which compensates for friction material wear and maintains a constant running clearance between the friction shoes and brake disc. They also maintain a constant displacement volume and hence a constant response time for each brake engagement.Caliper model 200DPA is a symmetrical opposed piston caliper brake design that is well suited for most high torque, high energy stopping applications. Model HC-3 and HD-3 calipers are designed for very heavy duty braking service. The design automatically compensates for run out on large diameter brake discs. Because of this feature, they require manual adjustment to compensate for friction material wear and to maintain a constant volume displacement for actuation. Model HC-3 requires a mounting between the piston housings. Model HD-3 is used for side surface mounting.Low coefficient friction shoes are available which permits the calipers to be used as tension brakes.All three caliper models can be air or hydraulic actuated. The pressurizing media must be specified to insure proper piston seal compatibility.Two seals are available: one for air and mineral base fluids, and the other for vegetable base fluids.Maximum allowable operating pressure is 1000 psi (69 bar). For those installations not equipped with a high pressure power source, a pressure intensifier can be used to provide the required pressure. This device multiplies a low air pressure input into a high hydraulic pressure output.
Note 0
Basic part number only. Suffix must be added for specific bore.QD is a registered trademark of Emerson Electric Co.Data shown is subject to change. Please consult factory for current dimensional data.Minimum gap during operations: 0.030" (0.8 mm) typical.
Specifications Actuation
Hydraulic Applied
Specifications Component
Standard Hub
Specifications Dimension J
0.01 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Mass
5.9 kg
Specifications Weight
13 lb
Specifications Where Used
ConveyorsFlywheel BrakesMining EquipmentRailroad Maintenance EquipmentTension Brakes
Specifications Wk2
0.3 lb·ft²
