Eaton-Airflex 238DBB Spring-Applied Disc Style Brake
Eaton-Airflex 238DBB Spring-Applied Disc Style Brake
SKU:CLU-3e87b2
Eaton-Airflex 238DBB Spring-Applied Disc Style Brake - High torque capacity, low maintenance, ideal for industrial applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Eaton-Airflex 238DBB Spring-Applied Disc Style Brake
$2,999.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 238DBB Spring-Applied Disc Style Brake
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 238DBB Spring-Applied Disc Style Brake is engineered for high-performance applications, featuring a low inertia friction disc assembly that enhances stopping efficiency. With optional split friction discs and durable PolyPak seals, this brake ensures reliable operation while reducing maintenance needs. Suitable for bottling equipment, power shovels, and various industrial machinery, this brake combines superior torque capacity with precise control, meeting the rigorous demands of institutional and government sectors.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

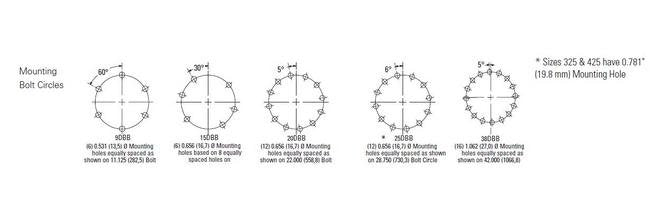

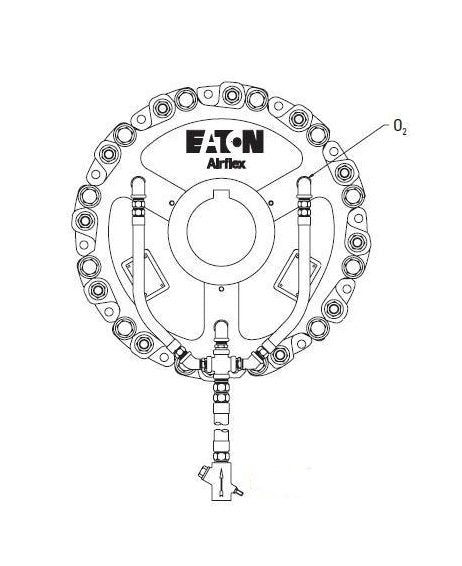

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
19.05 in | 484 mm
Specifications Dimension D1
9.000 in | 229 mm
Specifications Dimension D31
2.45 in | 62 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
1.25 in | 32 mm
Specifications Dimension H16
16.50 in | 419 mm
Specifications Dimension J
44.750 in | 1136.7 mm
Specifications Dimension J1
36.375 in | 923.9 mm
Specifications Dimension J2
45.01 in | 1143 mm
Specifications Dimension O2
3/4-14 NPT
Specifications Dimension W4
17.05 in | 433 mm
Specifications Disc Gear Inertia
562 lb·ft² | 23.60 kg·m²
Specifications Disc Gear Weight
340 lb | 154 kg
Specifications Dynamic Torque Rating
800000 lb·in | 90320 Nm
Specifications Housing Weight
2325 lb | 1055 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
11.00 in | 279 mm
Specifications Maximum Speed
950 rpm
Specifications Minimum Bore
7.38 in | 187 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
238DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
