Eaton-Airflex 320DBB Friction Disc Brakes

Eaton-Airflex 320DBB Friction Disc Brakes

CLU-d92c4e

High-performance Eaton-Airflex 320DBB Friction Disc Brakes for demanding applications, providing equal torque in both directions with low maintenance and high reliability.

$1,299.99
$1,299.99
Sale

Initiate Order

Eaton-Airflex 320DBB Friction Disc Brakes

Eaton-Airflex 320DBB Friction Disc Brakes

$1,299.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex 320DBB Friction Disc Brakes

Eaton-Airflex 320DBB Friction Disc Brakes

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex 320DBB Friction Disc Brakes are designed for high-demand applications, offering equal torque in both directions. Featuring a low inertia friction disc assembly with optional split friction discs, these brakes provide superior performance with low maintenance requirements. With high heat sink capacity and self-lubricating PolyPak seals, these brakes ensure reliability and longevity in bottling equipment, power shovels, conveyors, shears, and power presses.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

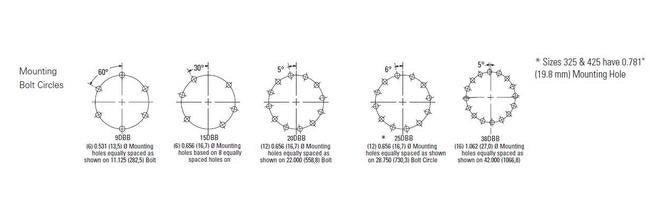

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
15.21 in | 386 mm
Specifications Dimension D1
8.25 in | 210 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
1.00 in | 25 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm

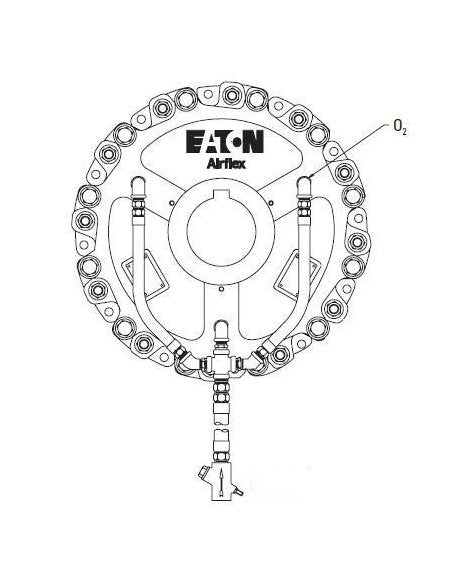

Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
13.68 in | 347 mm
Specifications Disc Gear Inertia
49 lb·ft² | 2.06 kg·m²
Specifications Disc Gear Weight
213 lb | 97 kg
Specifications Dynamic Torque Rating
149500 lb·in | 16879 Nm
Specifications Housing Weight
590 lb | 277 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.88 in | 149 mm
Specifications Maximum Speed
1850 rpm
Specifications Minimum Bore
4.25 in | 108 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
320DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
