Eaton-Airflex 40CB525 Element Spider Assembly
Eaton-Airflex 40CB525 Element Spider Assembly
SKU:CLU-fd6725
Dependable and precise, the Eaton-Airflex 40CB525 Element Spider Assembly ensures exceptional clutch and brake service for high-speed industrial applications.
Regular price
$2,150.00
Regular price
Sale price
$2,150.00
Unit price
per
Initiate Order
Eaton-Airflex 40CB525 Element Spider Assembly
$2,150.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 40CB525 Element Spider Assembly
$2,150.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex 40CB525 Element Spider Assembly is meticulously crafted to deliver reliable clutch and brake performance in demanding industrial environments. Engineered for high-speed and cyclic operations, this multi-connection element excels in power transmission and coupling applications. With dimensions designed for precision and weighing 464 lb, it offers exceptional inertia of 774 lb·ft². Manufactured by Eaton-Airflex, a trusted name in industrial power solutions.

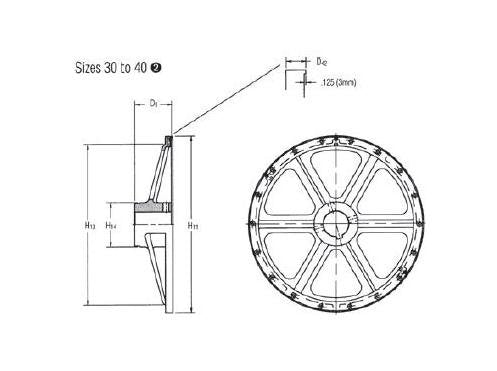

Product Specifications
Specifications Dimension D1
8.50 in | 216 mm
Specifications Dimension D42
1.69 in | 43 mm
Specifications Dimension H11
49.25 in | 1251 mm
Specifications Dimension H13
46.75 in | 1187 mm
Specifications Dimension H14
11.00 in | 279 mm
Specifications Inertia
774 lb·ft² | 32.51 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Size
40CB525
Specifications Type
Multi Connection
Specifications Weight
464 lb | 210 kg
