Eaton-Airflex 8CB250 Element Spider Assembly
Eaton-Airflex 8CB250 Element Spider Assembly
SKU:CLU-1588ee
Dependable Eaton-Airflex 8CB250 Element Spider Assembly for industrial clutch and brake operations.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Eaton-Airflex 8CB250 Element Spider Assembly
$289.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex 8CB250 Element Spider Assembly
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

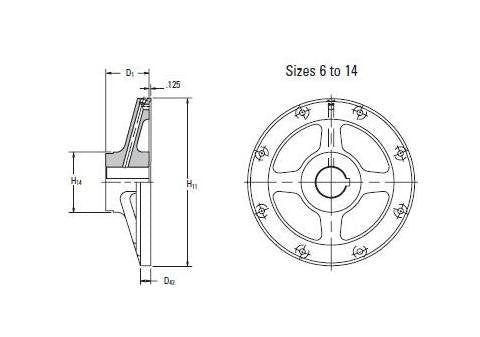

The Eaton-Airflex 8CB250 Element Spider Assembly is meticulously engineered to deliver reliable clutch or brake performance in demanding industrial environments. Ideal for high-speed cyclic operations, coupling, and power transmission needs, this single connection type spider boasts a Size of 8CB250, weighing 19 lb (8.6 kg) with an inertia of 2.3 lb·ft² (0.10 kg·m²). Its dimensions, including D1, D42, H11, and H14, ensure a precise fit and operation. Manufactured by Eaton-Airflex, this assembly excels in the most exacting applications, guaranteeing durability and efficiency.
Product Specifications
Specifications Dimension D1
2.88 in | 73 mm
Specifications Dimension D42
0.56 in | 14 mm
Specifications Dimension H11
13.25 in | 337 mm
Specifications Dimension H14
4.00 in | 102 mm
Specifications Inertia
2.3 lb·ft² | 0.10 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Size
8CB250
Specifications Type
Single Connection
Specifications Weight
19 lb | 8.6 kg
