Eaton-Airflex AD Dual Passage Rotorseals

Eaton-Airflex AD Dual Passage Rotorseals

CLU-83e0f7

Enhance efficiency with Eaton-Airflex AD Dual Passage Rotorseals. Sealed for precision, this rotorseal meets high-performance standards for industrial applications.

$285.99
$285.99
Sale

Initiate Order

Eaton-Airflex AD Dual Passage Rotorseals

Eaton-Airflex AD Dual Passage Rotorseals

$285.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex AD Dual Passage Rotorseals

Eaton-Airflex AD Dual Passage Rotorseals

$285.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience dual passage efficiency with the Eaton-Airflex AD Rotorseals. Featuring 1/4-18 inlet ports, it ensures precise discharge into shaft ends. The inner passage is sealed with 'O' rings while the outer passage is securely sealed with a compression grommet. With dimensions meeting industry standards, this rotorseal guarantees reliable performance at up to 1200 rpm and 150 psi pressure.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

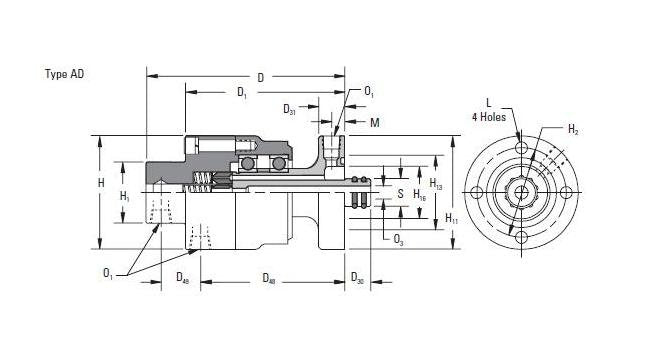

Product Specifications

Note 0
Passage consists of ten 0.14 in (3.6 mm) diameter holes.
Specifications Dimension D
5.69 in | 145 mm
Specifications Dimension D1
4.56 in | 116 mm
Specifications Dimension D30
0.750 in | 19 mm
Specifications Dimension D31
0.75 in | 19 mm
Specifications Dimension D48
4.14 in | 105 mm
Specifications Dimension D49
1.13 in | 29 mm
Specifications Dimension H
3.25 in | 83 mm
Specifications Dimension H1
1.75 in | 44 mm
Specifications Dimension H11
3.250 in | 82.6 mm
Specifications Dimension H13
2.17 in | 55 mm
Specifications Dimension H16
1.50 in | 38 mm
Specifications Dimension H2
2.562 in | 65.1 mm
Specifications Dimension L
0.34 in | 9 mm
Specifications Dimension M
0.38 in | 10 mm
Specifications Dimension O1
1/4-18
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension S
0.798 in | 20.3 mm
Specifications Inner Passage Area
0.049 in² | 0.32 cm²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
1200 rpm
Specifications Outer Passage Area
0.155 in² | 1 cm²
Specifications Size
AD
Specifications Weight
4.3 lb | 1.9 kg
