Eaton-Airflex Bearing Mounted CB Clutch - Size 14CB400
Eaton-Airflex Bearing Mounted CB Clutch - Size 14CB400
SKU:CLU-096956
Dependable Eaton-Airflex Bearing Mounted CB Clutch designed for high-speed industrial operations, with a torque rating of 19700 lb·in and air applied actuation.
Regular price
$3,459.99
Regular price
Sale price
$3,459.99
Unit price
per
Initiate Order
Eaton-Airflex Bearing Mounted CB Clutch - Size 14CB400
$3,459.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Bearing Mounted CB Clutch - Size 14CB400
$3,459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex Bearing Mounted CB Clutch in Size 14CB400 is meticulously engineered to deliver reliable clutch or brake performance in the most demanding industrial settings. Ideal for high-speed and cyclic operations, this clutch arrangement ensures efficient coupling and transmission of power. With a torque rating of 19700 lb·in, available for shaft diameters ranging from 1.750 to 2.500 inches, and an air applied actuation system by Eaton-Airflex, it guarantees precision and durability for critical applications.
Product Specifications
Note 0
Refers to basic part number only and does not include the rotorseal and hose. When ordering, specify shaft diameter.Refer to Rotorseal Section for mounting and dimension information.Part numbers for shaft diameters:1.250 thru 1.500 in - 70x135All other diameters - 70x45
Specifications Actuation
Air Applied
Specifications Available For Shaft Diameter
1.750 thru 2.500 in | 1.750 thru 2.500 mm

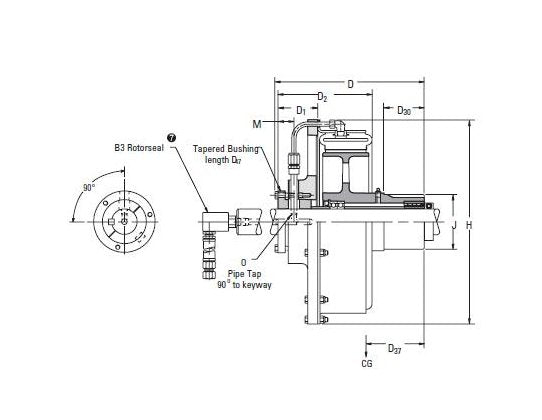

Specifications Dimension D
14.19 in | 360 mm
Specifications Dimension D1
3.44 in | 87 mm
Specifications Dimension D2
9.69 in | 246 mm
Specifications Dimension D30
3.50 in | 89 mm
Specifications Dimension D33
0.73 in | 19 mm
Specifications Dimension D37
8.69 in | 221 mm
Specifications Dimension D47
2.88 in | 73 mm
Specifications Dimension H
19.63 in | 499 mm
Specifications Dimension J
4.752 in | 120.7 mm
Specifications Dimension M
1.38 in | 35 mm
Specifications Drum
9.1 | 0.38 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
1000 rpm | 1350 rpm
Specifications Shaft Diameter
1.750 in | 2.500 in
Specifications Size
14CB400
Specifications Torque Rating 75 Psi55 Bar
19700 lb·in | 2230 Nm
Specifications Weight
137 lb | 62 kg
Specifications Wk2 Element Spider J
32 lb·ft² | 1.34
