Eaton-Airflex CB-204 Tapered Bushing Assembly
Eaton-Airflex CB-204 Tapered Bushing Assembly
SKU:CLU-2a7c08
Dependable Eaton-Airflex CB-204 Assembly for industrial clutch or brake service, high-speed operations, and power transmission.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Eaton-Airflex CB-204 Tapered Bushing Assembly
$1,599.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB-204 Tapered Bushing Assembly
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB-204 Tapered Bushing Assembly is a robust element assembly specifically engineered to deliver reliable clutch or brake performance in demanding industrial environments. With a Torque Rating of 13300 lb·in, this assembly is ideal for high-speed operations, coupling, and power transmission needs. Manufactured by Eaton-Airflex, this product excels in durability and efficiency, making it a top choice for industrial applications.

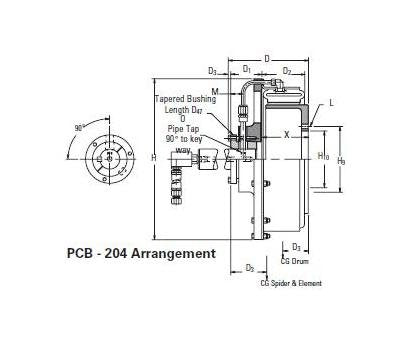

Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
9.81 in | 249 mm
Specifications Dimension D2
4.72 in | 120 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D37
3.5 in | 89 mm
Specifications Dimension D38
1.5 in | 38 mm
Specifications Dimension H
17.62 in | 448 mm
Specifications Dimension H10
6.250 in | 158.8 mm
Specifications Dimension H9
7.250 in | 184.2 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
5.06 in | 129 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
9.06 in | 230 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
1.750 thru 2.500
Specifications Size
12CB350
Specifications Torque Rating At 52 Bar
1500 Nm
Specifications Torque Rating At 75 Psi
13300 lb·in
