The Eaton-Airflex CB-204 Assembly is a versatile solution engineered for reliable clutch or brake performance in demanding industrial settings. With a Torque Rating of 2040 lb·in at 75 psi (231 Nm at 5.2 bar), this assembly is optimized for high-speed cyclic operations and power transmission applications. Its robust design ensures durability and efficiency, making it ideal for various industrial uses.
Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in

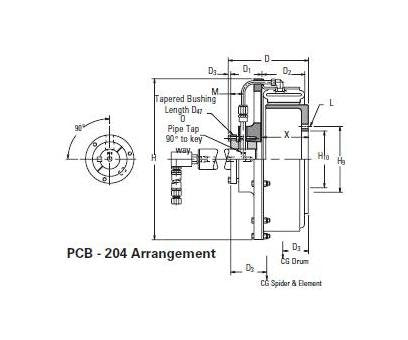

Specifications Bolt Hole Size L
0.406 in | 10.3 mm
Specifications Dimension D
6.28 in | 160 mm
Specifications Dimension D2
2.63 in | 67 mm
Specifications Dimension D24
1.38 in | 35 mm
Specifications Dimension D37
2.0 in | 51 mm
Specifications Dimension D38
1.1 in | 28 mm
Specifications Dimension H
7.25 in | 184 mm
Specifications Dimension H10
88.9 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
3.50 in | 89 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
5.63 in | 143 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
0.875 thru 1.437
Specifications Size
6CB200
Specifications Torque Rating At 52 Bar
231 Nm
Specifications Torque Rating At 75 Psi
2040 lb·in
