Eaton-Airflex CB-205 Tapered Bushing Arrangement
Eaton-Airflex CB-205 Tapered Bushing Arrangement
SKU:CLU-e8489e
Dependable and precise, the Eaton-Airflex CB-205 Tapered Bushing Arrangement ensures reliable clutch or brake service in high-demand industrial operations.
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
Eaton-Airflex CB-205 Tapered Bushing Arrangement
$1,299.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB-205 Tapered Bushing Arrangement
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

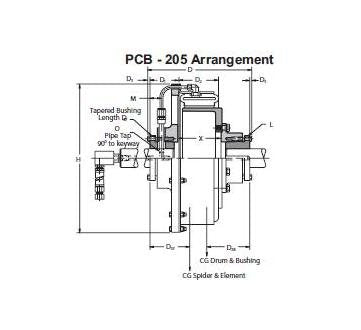

The Eaton-Airflex CB-205 Tapered Bushing Arrangement, part of the CB Clutches and Brakes series, is expertly crafted to deliver reliable clutch or brake functionality in demanding industrial settings. Ideal for high-speed, cyclic operations, as well as power transmission applications, this arrangement ensures precision and durability. With dimensions meticulously engineered for performance, including Spider Shaft Diameter of 2.563 thru 3.125 and Actuation via Air Applied, it meets the stringent requirements of industrial applications.
Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
13.75 in | 349 mm
Specifications Dimension D1
4.31 in
Specifications Dimension D3
0.38 in
Specifications Dimension D37
3.2 in | 81 mm
Specifications Dimension D38
3.9 in | 99 mm
Specifications Dimension D47
4.38 in
Specifications Dimension M
2.25 in
Specifications Dimension X
4.25 in | 108 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
10CB300
Specifications Spider Shaft Diameter
2.563 thru 3.125
