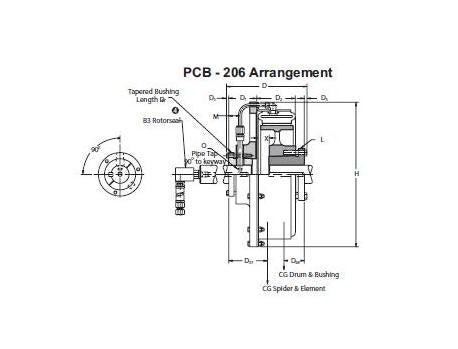

Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement
SKU:CLU-d103a7
Dependable Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement for industrial applications. High-speed, precision-driven performance.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement
$1,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Arrangement, part of the CB Clutches and Brakes series, is expertly crafted to deliver reliable performance in demanding industrial environments. Ideal for high-speed operations, cyclic tasks, coupling, and power transmission applications, this assembly ensures efficiency and durability. With dimensions tailored for precision, including a Spider Shaft Diameter range of 2.563 thru 3.125 inches and Air Applied actuation, this arrangement excels in meeting stringent industrial requirements.
Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
10.25 in | 260 mm
Specifications Dimension D1
109 in
Specifications Dimension D3
10 in
Specifications Dimension D37
3.2 in | 81 mm
Specifications Dimension D38
2.5 in | 64 mm
Specifications Dimension D47
111 in
Specifications Dimension M
57 in
Specifications Dimension X
0.75 in | 19 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
10CB300
Specifications Spider Shaft Diameter
2.563 thru 3.125
