Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly

Name: Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
Brand: Clutch Engineering
SKU: CLU-4d2c34
Price: 799.99 USD
Availability: OutOfStock

SKU:CLU-4d2c34

Dependable Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly for industrial applications. Size 10CB300, 8.31" Dimension D.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

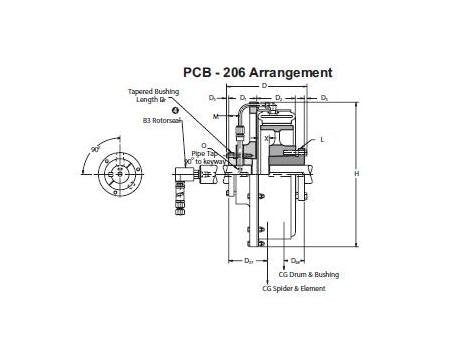

The Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly from the CB Clutches and Brakes series is engineered to deliver reliable performance in demanding industrial environments. Designed for high-speed operations and power transmission, this arrangement ensures precise and efficient clutch or brake service. With dimensions meeting Size 10CB300 specifications, including Dimension D of 8.31 inches and Spider Shaft Diameter of 1.750 thru 2.500, this assembly is ideal for industrial applications requiring dependable operation.

Product Specifications

Specifications Actuation

Air Applied

Specifications Bolt Hole Size L

0.531 in | 13.5 mm

Specifications Dimension D

8.31 in | 211 mm

Specifications Dimension D1

87 in

Specifications Dimension D3

7 in

Specifications Dimension D37

3.2 in | 81 mm

Specifications Dimension D38

2.0 in | 51 mm

Specifications Dimension D47

73 in

Specifications Dimension M

35 in

Specifications Dimension X

2.00 in | 51 mm

Specifications Hub Shaft Diameter

1.750 thru 2.500

Specifications Manufacturer

Eaton-Airflex

Specifications Size

10CB300

Specifications Spider Shaft Diameter

1.750 thru 2.500

Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
