Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
SKU:CLU-d6ed9e
High-performance CB-206 Tapered Bushing Arrangement for reliable clutch/brake service in industrial applications. Size: 10CB300, Actuation: Air Applied.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
$2,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB-206 Tapered Bushing Clutch & Brake Assembly
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB-206 Tapered Bushing Arrangement offers reliable clutch or brake service, ideal for demanding industrial applications. With dimensions tailored for high-speed operations, it excels in coupling and power transmission tasks. Manufactured by Eaton-Airflex, this unit features dimensions Size 10CB300, D37 of 3.2 in, and an air-applied actuation system, ensuring efficient performance and durability even in intense operations.

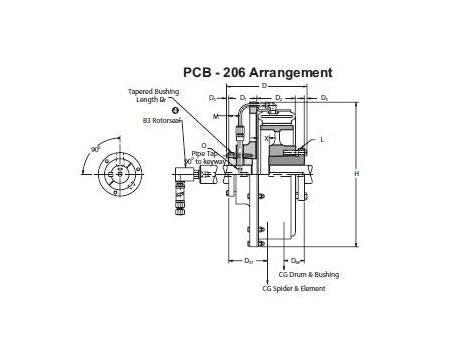

Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
9.28 in | 136 mm
Specifications Dimension D1
87 in | 109 in
Specifications Dimension D3
10 in | 7 in
Specifications Dimension D37
3.2 in | 81 mm
Specifications Dimension D38
2.5 in | 64 mm
Specifications Dimension D47
111 in | 73 in
Specifications Dimension M
35 in | 57 in
Specifications Dimension X
1.38 in | 35 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
10CB300
Specifications Spider Shaft Diameter
1.750 thru 2.500
