Eaton-Airflex CB-208 Tapered Bushing Assembly
Eaton-Airflex CB-208 Tapered Bushing Assembly
SKU:CLU-27ed97
Dependable CB-208 Assembly for high-speed industrial clutch & brake applications. Ensures reliability & precision performance.
Regular price
$2,099.99
Regular price
Sale price
$2,099.99
Unit price
per
Initiate Order
Eaton-Airflex CB-208 Tapered Bushing Assembly
$2,099.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB-208 Tapered Bushing Assembly
$2,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB-208 Assembly is a high-performance clutch and brake element designed for demanding industrial applications. With a torque rating of 13300 lb·in at 75 psi, it excels in high-speed cyclic operations, coupling, and power transmission. Its precision engineering ensures reliability and durability, making it ideal for institutional and government sectors seeking top-tier performance.
Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in

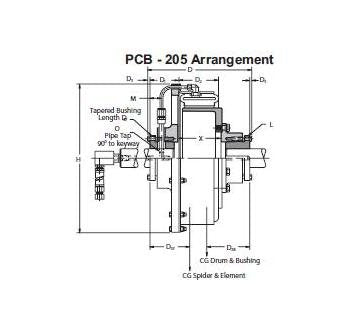

Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
6.17 in | 157 mm
Specifications Dimension D2
4.72 in | 120 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D38
2.5 in | 64 mm
Specifications Dimension H
17.62 in | 448 mm
Specifications Dimension H10
6.250 in | 158.8 mm
Specifications Dimension H9
7.250 in | 184.2 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
1.44 in | 37 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
9.06 in | 230 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
2.563 thru 3.125
Specifications Size
12CB350
Specifications Torque Rating At 52 Bar
1500 Nm
Specifications Torque Rating At 75 Psi
13300 lb·in
